BH3852S - SOUND CONTROLLER

Rohm

📥 Download Datasheet

BH3852S Datasheet Preview — Preview of BH3852S PDF

Datasheet Details

Part number	BH3852S
Manufacturer	ROHM
File Size	198.33 KB
Description	SOUND CONTROLLER
Datasheet	BH3852S_Rohm.pdf

BH3852S Product details

Description

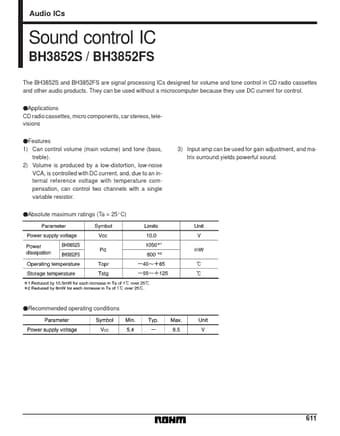

612 Audio ICs FInput / output circuits BH3852S / BH3852FS 613 Audio ICs BH3852S / BH3852FS 614 Audio ICs BH3852S / BH3852FS FElectrical characteristics(unless otherwise noted, Ta = 25_C, VCC = 8V, f = 1kHz, BW = 20 X 20kHz, VOL = Max., TONE = ALL FLAT, Rg = 600Ω, RL = 10kΩ, INPUT_AMP_GAIN = 0dB) 615 Audio ICs FMeasurement circuit BH3852S / BH3852FS 616 Audio ICs FApplication example BH3852S / BH3852FS 617 Audio ICs FOperation notes (1) Operating power supply voltage range As l

Features

1) Can control volume (main volume) and tone (bass, treble). 2) Volume is produced by a low-distortion, low-noise VCA, is controlled with DC current, and, due to an internal reference voltage with temperature compensation, can control two channels with a single variable resistor. FAbsolute maximum ratings (Ta = 25_C) 3) Input amp can be used for gain adjustment, and matrix surround yields powerful sound. FRecommended operating conditions 611 Audio ICs FBlock diagram BH3852S / BH3852FS FPin.
