BH1415F - Wireless Audio-Link

Datasheet Details

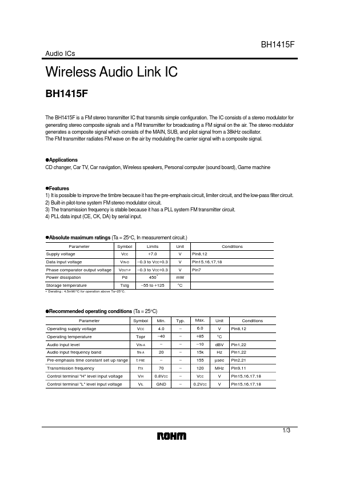

1) It is possible to improve the timbre because it has the pre-emphasis circuit, limiter circuit, and the low-pass filter circuit. 2) Built-in pilot-tone system FM stereo modulator circuit. 3) The transmission frequency is stable because it has a PLL system FM transmitter circuit. 4) PLL data input (CE, CK, DA) by serial input. !Absolute maximum ratings (Ta = 25°C, In measurement circuit. ) Parameter Supply voltage Symbol VCC Limits +7.0.
0.3 to VCC+0.3.
0.3 to VCC+0.3 450 ∗ Uni.
