BD3537F - Termination Regulators

BD3537F Description

Datasheet Termination Regulator for DDR-SDRAMs BD3537F General .
BD3537F is a termination regulator that complies with JEDEC requirements for DDR-SDRAM, This linear power supply uses a built-in N-channel MOSFET and.

BD3537F Features

* Incorporates a Push-Pull Power Supply for Termination (VTT)
* Incorporates an Enabler
* Incorporates an Undervoltage Lockout (UVLO)
* Incorporates a Thermal Shutdown Protector (TSD)
* Compatible with Dual Channel (DDR-II)

BD3537F Applications

* Power supply for DDR I/II - SDRAM Key Specifications
* Termination Input Voltage Range: 1.746V to 1.854V
* VCC Input Vol

📥 Download Datasheet

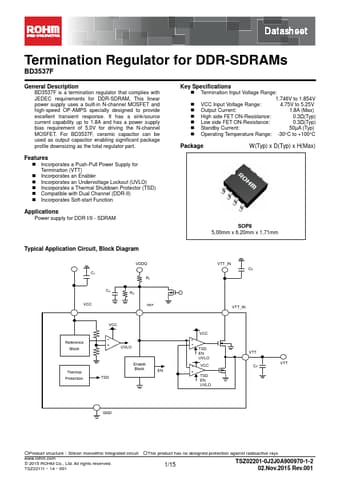

Preview of BD3537F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD3537F
Manufacturer
ROHM ↗
File Size
870.93 KB
Datasheet
BD3537F_Rohm.pdf
Description
Termination Regulators
