BA7760 - Microphone Amplifier

Rohm

📥 Download Datasheet

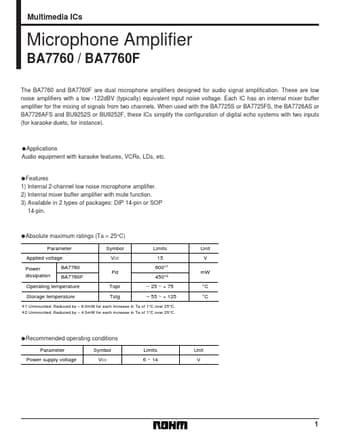

BA7760 Datasheet Preview — Preview of BA7760 PDF

Datasheet Details

Part number	BA7760
Manufacturer	ROHM
File Size	67.99 KB
Description	Microphone Amplifier
Datasheet	BA7760_Rohm.pdf

BA7760 Product details

Description

Pin No. ) Ch1 FILTER Ch1 MIC OUT Ch1 MIX IN MIX OUT MIC OUT Ch2 FILTER Ch2 MIC IN ( + ) Ch2 MIC IN ( ) Ch2 MUTE CTRL VCC Ripple filter GND CH1 microphone amplifier input ( + ) CH1 microphone amplifier input ( ) CH1 microphone amplifier fc CH1 microphone amplifier output Mixer buffer input Mixer buffer output CH2 microphone amplifier output CH2 microphone amplifier fc CH2 microphon

Features

VCRs, LDs, etc. Features.
1) Internal 2-channel low noise microphone amplifier. 2) Internal mixer buffer amplifier with mute function. 3) Available in 2 types of packages: DIP 14-pin or SOP 14-pin.
Absolute maximum ratings (Ta = 25°C) Parameter Applied voltage Power dissipation BA7760 BA7760F Symbol VCC Pd Topr Tstg Limits 15 600∗1 450∗2.
25 ~ + 75.
55 ~ + 125 Unit V mW °C °C Operating temperature Storage temperature ∗1 Unmounted. Reduced by.
6.0m.
