BA5815FM - 5-channel driver

BA5815FM Description

00W098A 5-channel driver for CD/DVD players BA5815FM .
The BA5815FM is a power driver IC for 5-channel CD and DVD players.

BA5815FM Features

* 1) 4-channel BTL driver and 1-channel reversible driver 2) 2 channels are PWM input direct-coupled type. (Built-in primary filter) 3) 2 channels have standard operational amplifiers. 4) The device can be miniaturized due to the adoption of HSOP-M28 power package. 5) Built-in thermal shut down circui

BA5815FM Applications

* DVD, CD players Absolute Maximum Ratings(Ta=25˚C) Parameter Power supply voltage Power dissipation Operating temperature range Storage temperature range Symbol Vcc Pd Topr Tstg
* 40
* 55 Limits 13.5 2.2 ~ ~ ∗ Unit V W +85 +150 ˚C ˚C ∗Derating : 17.6 mW/˚C for operation above Ta=25˚C

📥 Download Datasheet

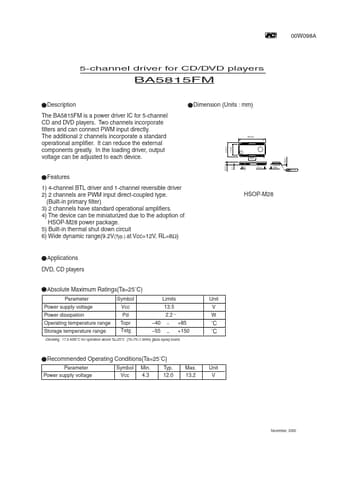

Preview of BA5815FM PDF
datasheet Preview Page 2

Datasheet Details

Part number
BA5815FM
Manufacturer
ROHM ↗
File Size
228.25 KB
Datasheet
BA5815FM_Rohm.pdf
Description
5-channel driver
