BA4560F - Low Noise Operational Amplifiers

Product Overview

Rohm

Datasheet Details

Part number	BA4560F
Manufacturer	ROHM
File Size	1.69 MB
Description	Low Noise Operational Amplifiers
Datasheet	BA4560F Datasheet

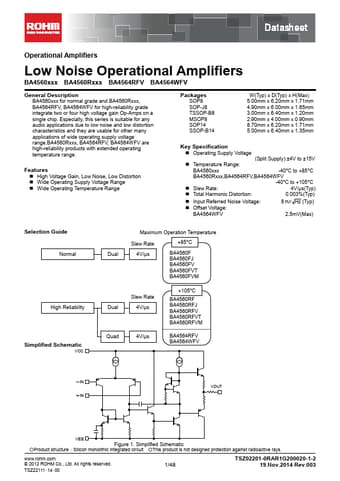

Additional preview pages of the BA4560F datasheet.

Product details

Description

BA4560xxx for normal grade and BA4560Rxxx, BA4564RFV, BA4564WFV for high-reliability grade integrate two or four high voltage gain Op-Amps on a single chip.

Features

High Voltage Gain, Low Noise, Low Distortion.
Wide Operating Supply Voltage Range.
Wide Operating Temperature Range Packages SOP8 SOP-J8 TSSOP-B8 MSOP8 SOP14 SSOP-B14 W(Typ) x D(Typ) x H(Max) 5.00mm x 6.20mm x 1.71mm 4.90mm x 6.00mm x 1.65mm 3.00mm x 6.40mm x 1.20mm 2.90mm x 4.00mm x 0.90mm 8.70mm x 6.20mm x 1.71mm 5.00mm x 6.40mm x 1.35mm Key Specification.
Operating Supply Voltage (Split Supply):±4V to ±15V.
Temperature Range: BA4560xxx -40°C to +85°C BA4560R.
