BA3935 - Reference voltage power supply

Product Overview

Rohm

Datasheet Details

Part number	BA3935
Manufacturer	ROHM
File Size	127.50 KB
Description	Reference voltage power supply
Datasheet	BA3935 Datasheet
Additional preview pages of the BA3935 datasheet.

Product details

Description

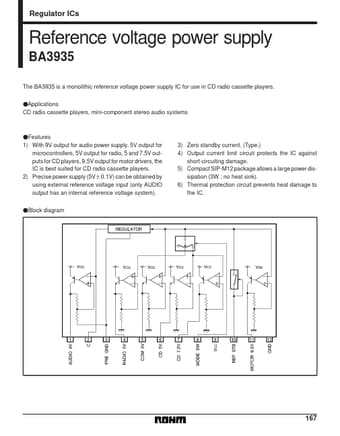

BA3935 FAbsolute maximum ratings (Ta = 25_C) FRecommended operating conditions 168 Regulator ICs FInput / output circuits BA3935 169 Regulator ICs FElectrical characteristics (unless otherwise noted, Ta = 25_C and VCC = 16.0V) BA3935 170 Regulator ICs BA3935 FCircuit operation (1) Timing chart (2) Estimate of allowable power dissipation Except under transitional conditions, the power dissipation of this IC is 3W per unit at 25_C.See Fig.1 for thermal derating characteristics, in

Features

1) With 9V output for audio power supply, 5V output for microcontrollers, 5V output for radio, 5 and 7.5V outputs for CD players, 9.5V output for motor drivers, the IC is best suited for CD radio cassette players. 2) Precise power supply (5V ± 0.1V) can be obtained by using external reference voltage input (only AUDIO output has an internal reference voltage system). FBlock diagram 3) Zero standby current. (Type. ) 4) Output current limit circuit protects the IC against short-circuiting damage.
