BA3426AS - Double cassette tape recorder system preamplifier

Rohm

BA3426AS Datasheet Preview — Preview of BA3426AS PDF

Datasheet Details

Part number	BA3426AS
Manufacturer	ROHM ↗
File Size	299.73 KB
Description	Double cassette tape recorder system preamplifier
Datasheet	BA3426AS_Rohm.pdf

BA3426AS Product details

Description

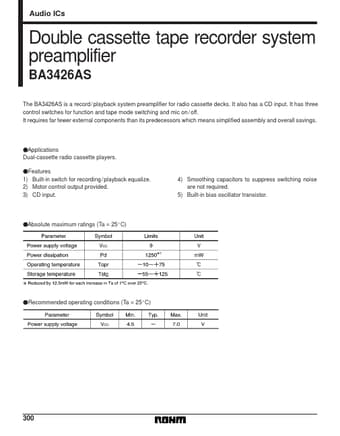

BA3426AS 302 Audio ICs BA3426AS FElectrical characteristics (unless otherwise noted, Ta = 25_C, VCC = 5.5V, f = 1kHz, Rg = 680Ω, Tape input = 66dBm, Mic. 50dBm, and Radio input = 23dBm, and CD input = 12dBm) 303 Audio ICs BA3426AS 304 Audio ICs BA3426AS 305 Audio ICs FMeasurement circuit BA3426AS 306 Audio ICs BA3426AS FCircuit operation (1) Control pins The control pin inputs and the corresponding states of the various inputs and outputs are summar

Features

1) Built-in switch for recording / playback equalize. 2) Motor control output provided. 3) CD input. 4) Smoothing capacitors to suppress switching noise are not required. 5) Built-in bias oscillator transistor. FAbsolute maximum ratings (Ta = 25_C) FRecommended operating conditions (Ta = 25_C) 300 Audio ICs FBlock diagram BA3426AS 301 Audio ICs FPin.
