BA3406AF Dual Preamplifier

BA3406AF Description

Audio ICs Dual preamplifier with mute function BA3406AF The BA3406AF is a multi-function dual-channel preamplifier with a built-in mute circuit and a.

BA3406AF Features

* 1) Wide operating power supply voltage range (6V to 14V). 2) Low noise (VNIN = 1.0µVrms Typ. ). 3) High open loop voltage gain (GVO = 80dB Typ. at pins 1 and 15). 4) Two channels on one chip, providing good channel balance. 5) Emitter-follower outputs for low output impedance. 6) Built-in switching c

📥 Download Datasheet

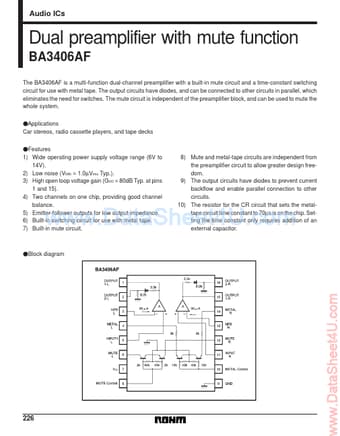

Preview of BA3406AF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BA3406AF
Manufacturer
ROHM ↗
File Size
173.99 KB
Datasheet
BA3406AF_Rohm.pdf
Description
Dual Preamplifier
