BA235, BA225 - (BA2xx) CR Timer

Name: BA235
SKU: BA235-528146

Rohm

The BA235 by Rohm is a (BA2xx) CR Timer. Below is the official datasheet preview.

Datasheet Details

Part number	BA235, BA225
Manufacturer	ROHM
File Size	99.94 KB
Description	(BA2xx) CR Timer
Datasheet	BA225_Rohm.pdf
Note	This datasheet PDF includes multiple part numbers: BA235, BA225. Please refer to the document for exact specifications by model.

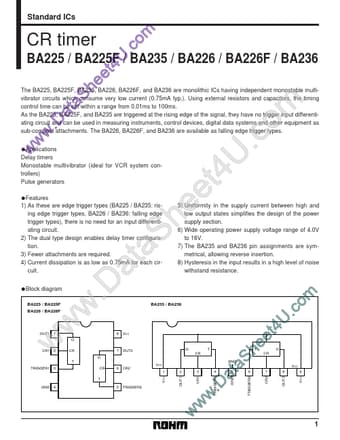

Additional preview pages of the BA235 datasheet.

1) As these are edge trigger types (BA225 / BA235: rising edge trigger types, BA226 / BA236: falling edge trigger types), there is no need for an input differentiating circuit. 2) The dual type design enables delay timer configuration. 3) Fewer attachments are required. 4) Current dissipation is as low as 0.75mA for each circuit. m o . c w a t a D . w.
Block diagram BA225 / BA225F BA226 / BA226F OUT1 CR1 w 1 2 3 4 w O CR T w O T . D 8 7 6 5 t a S a e h 5) Uniformity.
