BA00BC0WFPWT - Low Voltage Variable Output LDO Regulator

Description

BA00BC0WFP/WT is a PNP output LDO regulator IC with the output current of 1A and a voltage accuracy of ±2%.

Output voltage can be set (1.5V to 12V) by external resistor.

Features

  • + 0.4.
  • 0.2 1.2 0.8 1.778 0.5 ± 0.1 2.85 1 2 3 4 5 TO220FP-5.

📥 Download Datasheet

Datasheet Details

Part number BA00BC0WFPWT
Manufacturer ROHM
File Size 142.82 KB
Description Low Voltage Variable Output LDO Regulator
Datasheet download datasheet BA00BC0WFPWT Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BA01202 GaAs HBT HYBRID IC(N-CDMA hand set) Mitsubishi Electric Semiconductor
BA01203 GaAs HBT HYBRID IC(CDMA/AMPS handheld-phone) Mitsubishi Electric Semiconductor
BA01207 GaAs HBT HYBRID IC Mitsubishi Electric
BA01232 GaAs RF amplifier designed Mitsubishi Electric Semiconductor
BA01303 Triple Band(EGSM900/DCS1800/PCS1900) InGaP HBT Front-end module Mitsubishi Electric

Other Datasheets by ROHM

Part Number Description
BA00BC0WFP 1.0A Low-Dropout Voltage Regulator
BA00BC0WFP-E2 1A Variable/Fixed Output LDO Regulators
BA00BC0WF LDO Regulator With Shutdown Circuit
BA00BC0WT 1A Variable/Fixed Output LDO Regulators
BA00BC0WT-V5 1.0A Low-Dropout Voltage Regulator

Full PDF Text Transcription

Click to expand full text

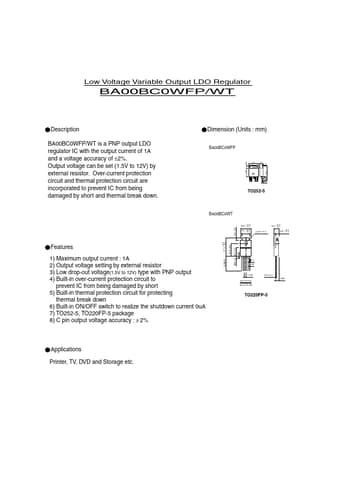

Low Voltage Variable Output LDO Regulator BA00BC0WFP/WT Description BA00BC0WFP/WT is a PNP output LDO regulator IC with the output current of 1A and a voltage accuracy of ±2%. Output voltage can be set (1.5V to 12V) by external resistor. Over-current protection circuit and thermal protection circuit are incorporated to prevent IC from being damaged by short and thermal break down. Dimension (Units : mm) BA00BC0WFP 1.5±0.2 6.5±0.2 +0.2 5.1−0.1 2-C0.5 2.3±0.2 0.5±0.1 5.5±0.2 1.5 0.8 0.5 1.27 0.5±0.1 1.0±0.2 TO252-5 BA00BC0WT 10.0 1.8 ± 0.2 7.0 + 0.3 – 0.1 + 0.3 – 0.1 2.5 1 2 3 4 5 9.5±0.5 4.5 + 0.3 – 0.1 φ 3.2 ± 0.1 2.8 + 0.2 – 0.1 12.0 ± 0.2 17.0 1) Maximum output current : 1A 2) Output voltage setting by external resistor 3) Low drop-out voltage(1.
