B1566 Power Transistor

B1566 Description

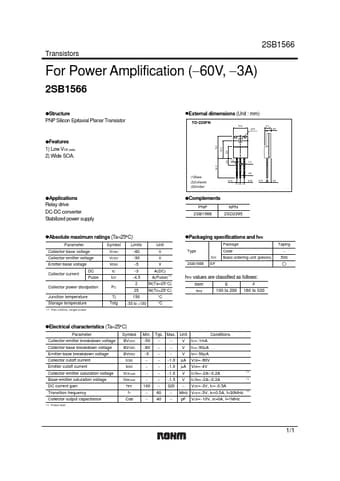

Transistors 2SB1566 For Power Amplification ( *60V, *3A) 2SB1566 zStructure PNP Silicon Epitaxial Planar Transistor z.

B1566 Applications

* Relay drive DC-DC converter Stabilized power supply zExternal dimensions (Unit : mm) TO-220FN 10.0 φ3.2 4.5 2.8 15.0 12.0 8.0 14.0 5.0 1.2 1.3 (1)Base (2)Collector (3)Emitter 0.8 2.54 2.54 (1) (2) (3) 0.75 zComplements PNP 2SB1566 NPN 2SD2395 2.6 zAbsolute maximum ratings (Ta=25°C) P

📥 Download Datasheet

Preview of B1566 PDF
datasheet Preview Page 2

Datasheet Details

Part number
B1566
Manufacturer
ROHM ↗
File Size
45.36 KB
Datasheet
B1566_Rohm.pdf
Description
Power Transistor
