A1952 2SA1952

A1952 Description

2SA1952 Transistors High-speed Switching Transistor ( *60V, *5A) 2SA1952 z.

A1952 Features

* 1) High speed switching. (tf : Typ. 0.15 µs at IC =
* 3A) 2) Low VCE(sat). (Typ.
* 0.2V at IC/IB =
* 3/
* 0.15A) 3) Wide SOA. (safe operating area) 4) Complements the 2SC5103. zExternal dimensions (Units : mm) 2SA1952 (1) 0.9 0.75 5.5 1.5 2.3 5.1 0.9 (3) (2) 2.3 0.65

📥 Download Datasheet

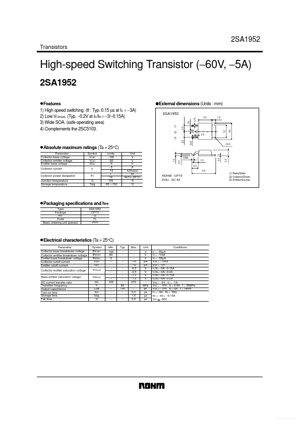

Preview of A1952 PDF
datasheet Preview Page 2

Datasheet Details

Part number
A1952
Manufacturer
ROHM ↗
File Size
49.29 KB
Datasheet
A1952_Rohm.pdf
Description
2SA1952
