2SD1468S - MEDIUM POWER TRANSISTOR

Features

  • 1) Low saturation voltage, typically VCE(sat) = 0.08V at Ic / IB = 500mA / 500A. 2) Ideal for low voltage, high current drives. 3) High DC current gain and high current.
  • Dimensions (Unit : mm) SPT 4.0 3.0 2.0 (15Min. ) 3Min. 0.45 2.5 5.0 (1) (2) (3) 0.5 0.45 (1)Emitter (2)Collector (3)Base Taping specifications.
  • Absolute maximum ratings (Ta=25C) Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Juncti.

📥 Download Datasheet

Datasheet Details

Part number 2SD1468S
Manufacturer ROHM
File Size 154.51 KB
Description MEDIUM POWER TRANSISTOR
Datasheet download datasheet 2SD1468S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SD1468S NPN Transistor SeCoS
2SD1468 NPN Transistor SeCoS
2SD1460 Silicon NPN Transistor Toshiba
2SD1466 NPN Transistor INCHANGE
2SD1400 NPN Transistor INCHANGE

Other Datasheets by ROHM

Part Number Description
2SD1484K Medium Power Transistor
2SD1055 Medium Power Transistor
2SD1189 NPN Transistor
2SD1200 NPN Silicon Transistor
2SD1225M NPN Transistor

Full PDF Text Transcription

Click to expand full text

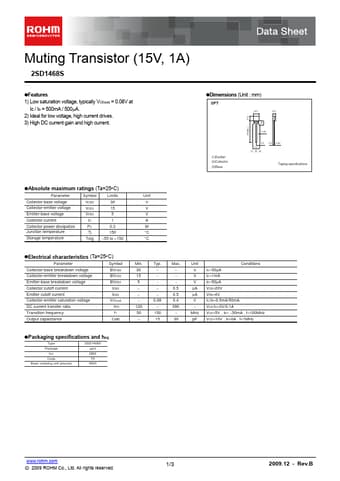

Muting Transistor (15V, 1A) 2SD1468S Features 1) Low saturation voltage, typically VCE(sat) = 0.08V at Ic / IB = 500mA / 500A. 2) Ideal for low voltage, high current drives. 3) High DC current gain and high current. Dimensions (Unit : mm) SPT 4.0 3.0 2.0 (15Min.) 3Min. 0.45 2.5 5.0 (1) (2) (3) 0.5 0.45 (1)Emitter (2)Collector (3)Base Taping specifications Absolute maximum ratings (Ta=25C) Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCES VEBO IC PC Tj Tstg Limits 30 15 5 1 0.
