2SC6114 - Small signal low frequency amplifier

Key Features

  • 1) Low Cob. Cob=2.0pF (Typ. ) 2) Complements the 2SA2199. 0.1 0.22 (3) 0.16 (1) (2) zStructure NPN silicon epitaxial planar transistor (1) Base (2) Emitter (3) Collector 0.17 0.35 0.6 0.37 Abbreviated symbol : N zDimensions (Unit : mm) zAbsolute maximum (Ta=25°C) Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Power dissipation Junction temperature Range of storage temperature ∗1 Pw=1ms Single pulse ∗2 Each terminal mounted on a recomme.

📥 Download Datasheet

Datasheet Details

Part number 2SC6114
Manufacturer ROHM
File Size 109.79 KB
Description Small signal low frequency amplifier
Datasheet download datasheet 2SC6114 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SC6112 NPN Triple Diffused Planar Silicon Transistor Sanyo Semicon Device
2SC6113 NPN Triple Diffused Planar Silicon Transistor Sanyo Semicon Device
2SC6116LS NPN Triple Diffused Planar Silicon Transistor Sanyo Semicon Device
2SC6117 NPN Triple Diffused Planar Silicon Transistor Sanyo Semicon Device
2SC6118LS NPN Triple Diffused Planar Silicon Transistor Sanyo Semicon Device

Other Datasheets by ROHM

Part Number Description
2SC1545 Epitaxial Planar NPN Transistors
2SC1615 NPN Transistor
2SC1645 NPN Transistor
2SC1645S High-gain Amplifier Transistor
2SC1651 Triple Diffusied NPN Silicon Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

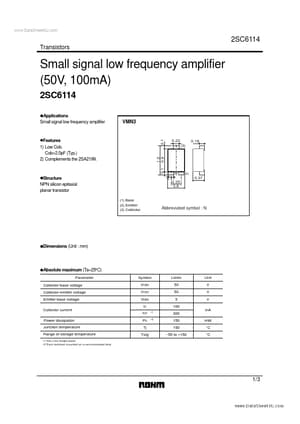

www.DataSheet4U.com 2SC6114 Transistors Small signal low frequency amplifier (50V, 100mA) 2SC6114 zApplications Small signal low frequency amplifier VMN3 0.1 1.0 0.8 zFeatures 1) Low Cob. Cob=2.0pF (Typ.) 2) Complements the 2SA2199. 0.1 0.22 (3) 0.16 (1) (2) zStructure NPN silicon epitaxial planar transistor (1) Base (2) Emitter (3) Collector 0.17 0.35 0.6 0.
