2SC5729 - Medium power transistor

Rohm

📥 Download Datasheet

2SC5729 Datasheet Preview — Preview of 2SC5729 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SC5729
Manufacturer	ROHM
File Size	79.04 KB
Description	Medium power transistor
Datasheet	2SC5729_Rohm.pdf

2SC5729 Product details

Features

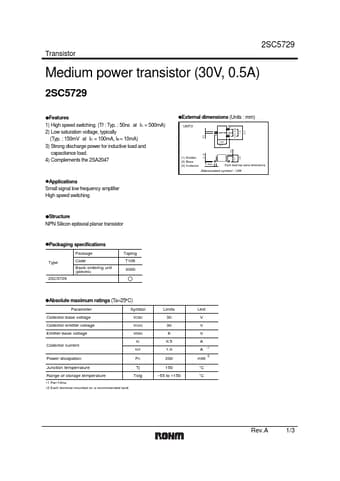

1) High speed switching. (Tf : Typ. : 50ns at IC = 500mA) 2) Low saturation voltage, typically (Typ. : 150mV at IC = 100mA, IB = 10mA) 3) Strong discharge power for inductive load and capacitance load. 4) Complements the 2SA2047 zExternal dimensions (Units : mm) (1) 0.65 0.65 UMT3 0.3 (3) 1.25 2.1 0.15 0.2 (2) (1) Emitter (2) Base (3) Collector 0.1Min. Each lead has same dimensions Abbreviated symbol : UW z.
