2SC3838K - High-Frequency Amplifier Transistor

Features

  • 1)High transition frequency. (Typ. fT=3.2GHz) 2)Small rbb'Cc and high gain. (Typ.4ps) 3)Small NF. lOutline 　 SOT-346 　 SC-59 　 　 　 　 SMT3 　 　 　 　 　　　　　　　　 lInner circuit Datasheet l.

📥 Download Datasheet

Datasheet Details

Part number 2SC3838K
Manufacturer ROHM
File Size 1.11 MB
Description High-Frequency Amplifier Transistor
Datasheet download datasheet 2SC3838K Datasheet

📁 Similar Datasheet

  • 2SC3838K - High-Frequency Amplifier Transistor (Kexin)
  • 2SC3838 - Silicon NPN Transistor (Inchange Semiconductor)
  • 2SC3838 - HIGH-FREQUENCY AMPLIFIER TRANSISTOR (UTC)
  • 2SC3838 - NPN Transistor (SeCoS)
  • 2SC3838 - High-Frequency Amplifier Transistor (Weitron)
  • 2SC3838 - NPN Transistors (Kexin)
  • 2SC3838Q - High-Frequency Amplifier Transistor (Weitron)
  • 2SC383 - NPN Transistor (Toshiba Semiconductor)
  • 2SC3830 - Silicon NPN Transistor (Sanken electric)
  • 2SC3830 - SILICON POWER TRANSISTOR (SavantIC)
Other Datasheets by Rohm
  • 2SC3838 - High-Frequency Amplifier Transistor
  • 2SC3837K - High-Frequency Amplifier Transistor
  • 2SC3839K - (2SC3839K / 2SC4084) Epitaxial Planar NPN Silicon Transistors
  • 2SC3802K - Epitaxial Planar NPN Silicon Transistor
  • 2SC3082K - NPN Silicon Transistor
  • 2SC3270M - (2SC3270M / 2SC4015) Triple Diffused Planar NPN Silicon Transistors
  • 2SC3271 - Triple Diffused Planar NPN Silicon Transistor
  • 2SC3271F - Chroma Amplifier Transistor

Full PDF Text Transcription

Click to expand full text

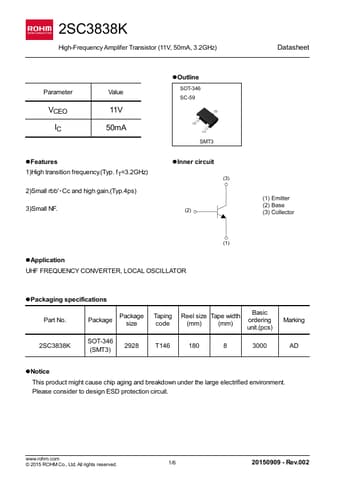

2SC3838K High-Frequency Amplifer Transistor (11V, 50mA, 3.2GHz) Parameter VCEO IC Value 11V 50mA lFeatures 1)High transition frequency.(Typ. fT=3.2GHz) 2)Small rbb'Cc and high gain.(Typ.4ps) 3)Small NF. lOutline 　 SOT-346 　 SC-59 　 　 　 　 SMT3 　 　 　 　 　　　　　　　　 lInner circuit Datasheet lApplication UHF FREQUENCY CONVERTER, LOCAL OSCILLATOR lPackaging specifications Part No. Package Package size 2SC3838K SOT-346 (SMT3) 2928 　　　　　　　　　　　　　　　　　　　　　　 Taping code Reel size Tape width (mm) (mm) Basic ordering unit.(pcs) Marking T146 180 8 3000 AD lNotice This product might cause chip aging and breakdown under the large electrified environment. Please consider to design ESD protection circuit.
