2SA1038S - High-voltage Amplifier Transistor

Name: 2SA1038S
SKU: 2SA1038S-73255

Rohm

The 2SA1038S by Rohm is a High-voltage Amplifier Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	2SA1038S
Manufacturer	ROHM
File Size	79.70 KB
Description	High-voltage Amplifier Transistor
Datasheet	2SA1038S_Rohm.pdf

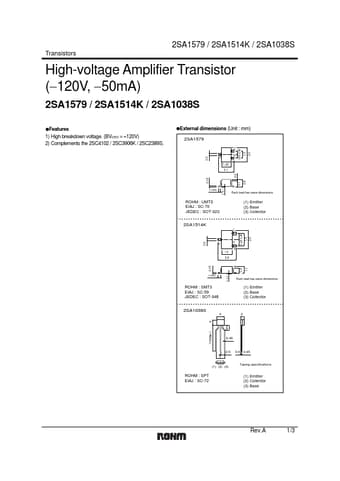

Additional preview pages of the 2SA1038S datasheet.

1) High breakdown voltage. (BVCEO =.
120V) 2) Complements the 2SC4102 / 2SC3906K / 2SC2389S. zExternal dimensions (Unit : mm) 2SA1579 (1) 0.65 0.65 0.7 0.8 0.3 (3) 1.25 2.1 0.15 0.2 (2) 0.1Min. 0~0.1 Each lead has same dimensions ROHM : UMT3 EIAJ : SC-70 JEDEC : SOT-323 2SA1514K (1) 0.4 (3) 1.6 2.8 0.15 0.3Min. 0 to 0.1 Each lead has same dimensions ROHM : SMT3 EIAJ : SC-59 JEDEC : SOT-346 (1) Emitter (2) Base (3) Collector 2SA1038S 3 4 2 (15Min. ) 3Min. 0.45 2.5.
