R6500-12, R6500-11 Datasheet - Rockwell

R6500-12 One-Chip Microcomputers

R6500-12 Features

* Enhanced 6502 CPU -Four new bit manipulation instructions: Set Memory Bit (SMB) Reset Memory Bit (RMB) Branch on Bit Set (BBS) Branch on Bit Reset (BBR) -Decimal and binary arithmetic modes -13 addressing modes -True indexing

* 3K-byte mask-programmable ROM (R6500/11, R6500/12)

R6500-11-Rockwell.pdf

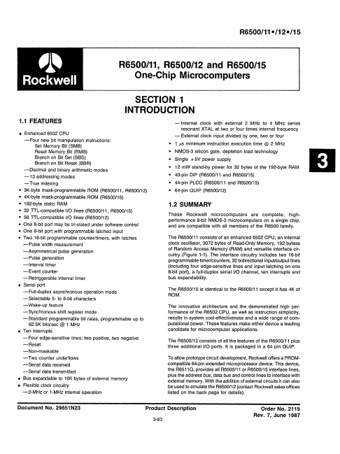

R6500-12 Datasheet Preview — This datasheet PDF includes multiple part numbers: R6500-12, R6500-11. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

R6500-12, R6500-11

Manufacturer:

Rockwell

File Size:

2.08 MB

Description:

One-chip microcomputers.

Note:

This datasheet PDF includes multiple part numbers: R6500-12, R6500-11.
Please refer to the document for exact specifications by model.
