10939 - Dot Matrix Display Controller

Download the 10939 datasheet PDF. This datasheet also covers the 10938 variant, as both devices belong to the same dot matrix display controller family and are provided as variant models within a single manufacturer datasheet.

Description

The Rockwell 10938 and 10939 Dot Matrix Display Controller is a two-chip MOS/LSI general purpose display controller system designed to interface to dot matrix displays (vacuum-fluorescent or LED).

Features

  • 20-character display driver cascadable to 80.
  • Standard 5 x 7 character font.
  • Separate cursor driver output.
  • Direct drive capability for vacuum-fluorescent display.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (10938-Rockwell.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 10939
Manufacturer Rockwell
File Size 497.95 KB
Description Dot Matrix Display Controller
Datasheet download datasheet 10939 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
10939P MIC10939P Micrel Semiconductor
1090MP Class C Avionics Advanced Power Technology
10911210 Analog AMR/GMR Angle Sensors Infineon
10912210 Analog AMR/GMR Angle Sensors Infineon
1091ECP XR-1091 Exar

Other Datasheets by Rockwell

Part Number Description
10937 Alphanumeric Display Controller
10938 Dot Matrix Display Controller
10941 Alphanumeric and Bargraph Display Controller
10942 Dot Matrix Display Controller
10943 Dot Matrix Display Controller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

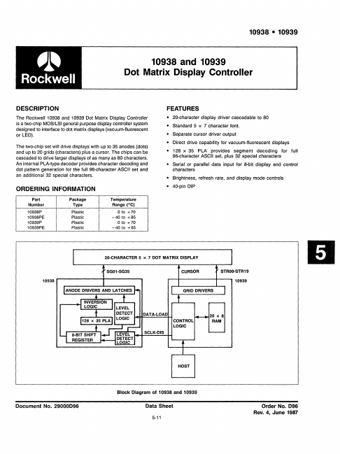

'1'Rockwell 10938 • 10939 10938 and 10939 Dot Matrix Display Controller DESCRIPTION The Rockwell 10938 and 10939 Dot Matrix Display Controller is a two-chip MOS/LSI general purpose display controller system designed to interface to dot matrix displays (vacuum-fluorescent or LED). The two-chip set will drive displays with up to 35 anodes (dots) and up to 20 grids (characters) plus a cursor. The chips can be cascaded to drive larger displays of as many as 80 characters. An internal PLA-type decoder provides character decoding and dot pattern generation for the full 96-character ASCII set and an additional 32 special characters.
