SSA-250 Smart Current Sensor

SSA-250 Description

SSA - Smart Current Sensor Amplified Analog Output and Reinforced Isolation Nominal Current Maximum Current Power Supply (3.0 to 5.5vdc) Differential.

SSA-250 Applications

* » Battery Systems » UPS systems » Motor Drives » Frequency Inverters » Fuel Cells SPECIFICATIONS 100A, 250A, 500A, 1000A - others on request 2 times nominal 3.0V, 20mA typical high impedance load 5.5V, 40mA typical high impedance load 100A =12mV/amp 250A = 5mV/amp 500A = 2.5mV/amp 1000A = 1.

📥 Download Datasheet

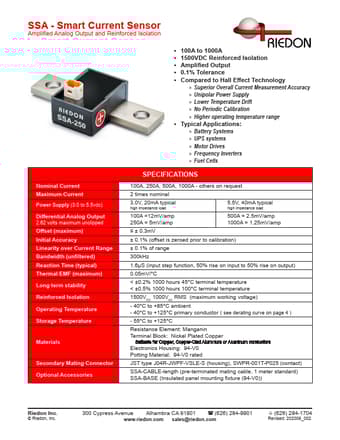

Preview of SSA-250 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SSA-250
Manufacturer
Riedon
File Size
896.80 KB
Datasheet
SSA-250-Riedon.pdf
Description
Smart Current Sensor
