RTQ2079-QF - Functional Safety PMIC

Description

The RTQ2079-QF is a highly integrated PMIC designed for automotive camera applications.

It includes three step-down converters, one high PSRR low-dropout (LDO) regulator, and one general low-dropout (LDO) regulator.

Features

  • AEC-Q100 Grade 1 Qualified.
  • Compliance with ISO 26262 ASIL B.
  • Power-On Built-In Self-Test (BIST) for OV/UV Monitors, I2C Cyclic Redundancy Check (CRC), and OTP Register CRC Protection.
  • Three Step-Down Converters (HVBuck1, LVBuck2, and LVBuck3) with Peak-Current Mode PWM Operation and PSM Mode for Sentry Mode via I2C Setting.
  • Fixed Switching Frequency at 2.1MHz.
  • EMI Reduction Features including Spread Spectrum and Phase-Shift Operation.
  • HVBuck1 Supports Input V.

📥 Download Datasheet

Datasheet preview – RTQ2079-QF

Datasheet Details

Part number RTQ2079-QF
Manufacturer Richtek
File Size 2.69 MB
Description Functional Safety PMIC
Datasheet download datasheet RTQ2079-QF Datasheet
Additional preview pages of the RTQ2079-QF datasheet.

📁 Similar Datasheet

Other Datasheets by Richtek

Full PDF Text Transcription

Click to expand full text

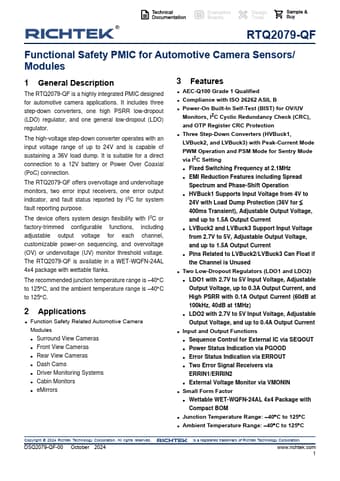

RTQ2079-QF Functional Safety PMIC for Automotive Camera Sensors/ Modules 1 General Description The RTQ2079-QF is a highly integrated PMIC designed for automotive camera applications. It includes three step-down converters, one high PSRR low-dropout (LDO) regulator, and one general low-dropout (LDO) regulator. The high-voltage step-down converter operates with an input voltage range of up to 24V and is capable of sustaining a 36V load dump. It is suitable for a direct connection to a 12V battery or Power Over Coaxial (PoC) connection. The RTQ2079-QF offers overvoltage and undervoltage monitors, two error input receivers, one error output indicator, and fault status reported by I2C for system fault reporting purpose.
