RT9641A - Triple Linear Regulator Controller Support ACPI Control Interface

RT9641A Description

RT9641A/B Triple Linear Regulator Controller Support ACPI Control Interface General .
The RT9641A/B, paired with either the RT9230 or RT9231 simplifies the implementation of ACPIcompliant designs in microprocessor and computer applicati.

RT9641A Applications

* The IC integrates two linear controllers and a low-current pass transistor, as well as the monitoring and control functions into a 16-pin SOIC package. One linear controller generates the 3.3VDUAL voltage plane from an ATX power supply's 5VSB output during sleep states (S3,S4/S5), powering the PCI

📥 Download Datasheet

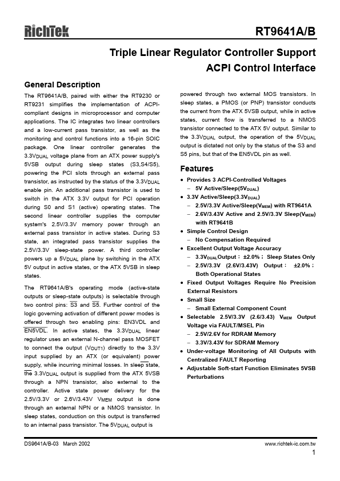

Preview of RT9641A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RT9641A
Manufacturer
Richtek
File Size
224.90 KB
Datasheet
RT9641A-Richtek.pdf
Description
Triple Linear Regulator Controller Support ACPI Control Interface
