RT8205C, RT8205A Datasheet - Richtek

RT8205C Main Power Supply Controllers

The RT8205A/B/C dual step-down, switch-mode powersupply controller generates logic-supply voltages in battery-powered systems. The RT8205A/B/C includes two pulse-width modulation (PWM) controllers fixed at 5V/ 3.3V or adjustable from 2V to 5.5V. An alternative LGATE1 output LG1_CP can be used for ex.

RT8205C Features

* 2 linear regulators providing fixed 5V and 3.3V outputs. The linear regulator each provides up to 70mA output current with automatic linear-regulator bootstrapping to the PWM outputs. The RT8205A/B/C includes on-board power-up sequencing, the power-good output, internal softstart, and internal soft-

RT8205A_Richtek.pdf

This datasheet PDF includes multiple part numbers: RT8205C, RT8205A. Please refer to the document for exact specifications by model.

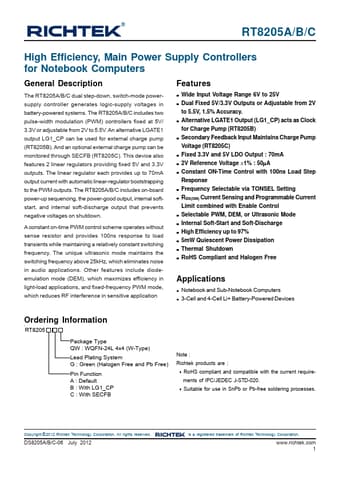

RT8205C Datasheet Preview Page 2 RT8205C Datasheet Preview Page 3
