RT8035ZQW - 1.25MHz Synchronous Step-Down Converter

Download the RT8035ZQW datasheet PDF (RT8035 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 1.25mhz synchronous step-down converter.

Description

The RT8035 is a high-efficiency Pulse-Width-Modulated (PWM) dual step-down DC/DC converter.

Features

  • z 2.5V to 5.5V Input Range z 800mA Output Current z 1.25MHz Fixed Frequency PWM Operation z 95% Efficiency z No Schottky Diode Required z 0.6V Reference Allows Low Output Voltage z Low Dropout Operation : 100% Duty Cycle z Small 10-Lead WDFN Package z RoHS Compliant and Halogen Free.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (RT8035-Richtek.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number RT8035ZQW
Manufacturer Richtek
File Size 213.89 KB
Description 1.25MHz Synchronous Step-Down Converter
Datasheet download datasheet RT8035ZQW Datasheet

📁 Similar Datasheet

  • RT8004 - Synchronous Step-Down Regulator (Richtek Technology)
  • RT8015 - Synchronous Step-Down Regulator (Richtek Technology)
  • RT8015B - Synchronous Step-Down Converter (Richtek Technology)
  • RT805 - AUTOMOTIVE BRIDGE RECTIFIERS (LRC)
  • RT81 - AUTOMOTIVE BRIDGE RECTIFIERS (LRC)
  • RT810 - AUTOMOTIVE BRIDGE RECTIFIERS (LRC)
  • RT8100A - Synchronous buck PWM DC/DC (Richtek Technology Corporation)
  • RT8101 - 12V Synchronous Buck PWM DC-DC (Richtek Technology Corporation)
  • RT8101A - 12V Synchronous Buck PWM DC-DC (Richtek Technology Corporation)
  • RT8105 - 5V/12V Synchronous Buck PWM DC-DC Controller (RichTek Technology)
Other Datasheets by Richtek
  • RT8035 - 1.25MHz Synchronous Step-Down Converter
  • RT8035A - 1.25MHz Synchronous Step-Down Converter
  • RT8035GQW - 1.25MHz Synchronous Step-Down Converter
  • RT8036 - One Step Down DC/DC Converter and Four Linear Regulators
  • RT8003 - High-Efficiency Synchronous Buck PWM Converter
  • RT8005 - High-Efficiency Synchronous Buck PWM Converter
  • RT8008 - High Efficiency PWM Step-Down DC/DC Converter
  • RT8009 - High Efficiency PWM Step-Down DC/DC Converter

Full PDF Text Transcription

Click to expand full text

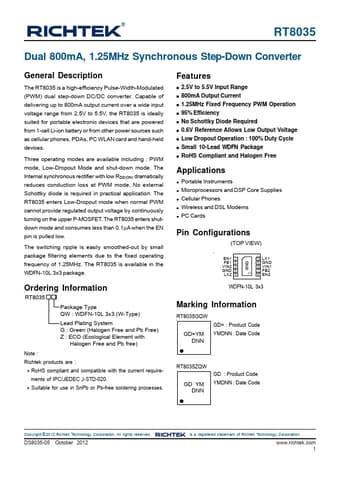

® RT8035 Dual 800mA, 1.25MHz Synchronous Step-Down Converter General Description The RT8035 is a high-efficiency Pulse-Width-Modulated (PWM) dual step-down DC/DC converter. Capable of delivering up to 800mA output current over a wide input voltage range from 2.5V to 5.5V, the RT8035 is ideally suited for portable electronic devices that are powered from 1-cell Li-ion battery or from other power sources such as cellular phones, PDAs, PC WLAN card and hand-held devices. Three operating modes are available including : PWM mode, Low-Dropout Mode and shut-down mode. The Internal synchronous rectifier with low RDS(ON) dramatically reduces conduction loss at PWM mode. No external Schottky diode is required in practical application.
