RT7276, RT7275 - Synchronous Step-Down Converter

Richtek

📥 Download Datasheet

RT7276 Datasheet Preview — This datasheet PDF includes multiple part numbers: RT7276, RT7275. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

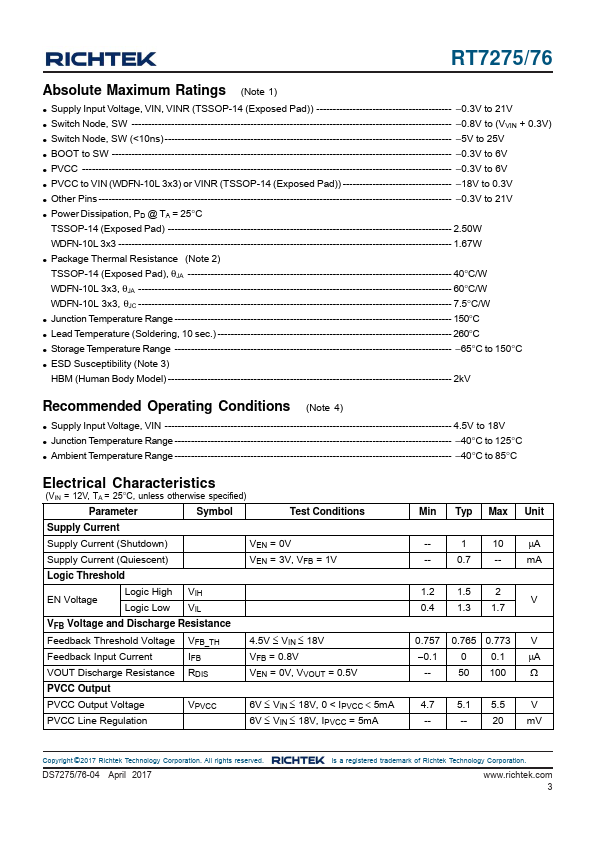

datasheet Preview Page 3

Datasheet Details

Part number	RT7276, RT7275
Manufacturer	Richtek ↗
File Size	424.74 KB
Description	Synchronous Step-Down Converter
Datasheet	RT7275_Richtek.pdf
Note	This datasheet PDF includes multiple part numbers: RT7276, RT7275. Please refer to the document for exact specifications by model.

RT7276 Product details

Description

The RT7275/76 are high-performance 700kHz 3A stepdown regulators with internal power switches and synchronous rectifiers.

Features

Fast Transient Response.
Steady 700kHz Switching Frequency  At all Load Currents (RT7275)  Discontinuous Operating Mode at Light Load (RT7276).
3A Output Current.
Advanced Constant On-Time (ACOTTM) Control.
Optimized for Ceramic Output Capacitors.
4.5V to 18V Input Voltage Range.
Internal 90mΩ Switch and 60mΩ Synchronous Rectifier.
0.765V to 8V Adjustable Output Voltage.
Externally-Adjustable, Pre-Biased Compatible Soft- Start.
Cycle-by-Cycle.
