RT7206KN Highly-Integrated USB Type-C Power Delivery Controller

RT7206KN Description

RT7206KN Highly-Integrated USB Type-C Power Delivery Controller with Built-In Blocking N-MOSFET 1 General .
The RT7206KNx series is a USB Type-C Power Delivery (PD) controller, that mainly utilized in the secondary side for off-line AC-DC power converters.

RT7206KN Features

* Protocol Support
* USB PD3.0 and PPS
* High Integration
* Wide Operating Range from 3.3V to 21V
* Built-In Shunt Regulator for Constant-Voltage and Constant-Current Regulations
* Built-In Blocking N-MOSFET
* Built-In Quick Discharge in VDD and VBUS
* Built-In VCONN

RT7206KN Applications

* The recommended junction temperature range is
* 40C to 125C, and the ambient temperature range is
* 40C to 105C. 2 Ordering Information RT7206KN - Programmed Firmware Code AABBX AA: Application Code BB: Model Code X: Customer Approved Version Code Package Type(1) S: SOP-8 Le

📥 Download Datasheet

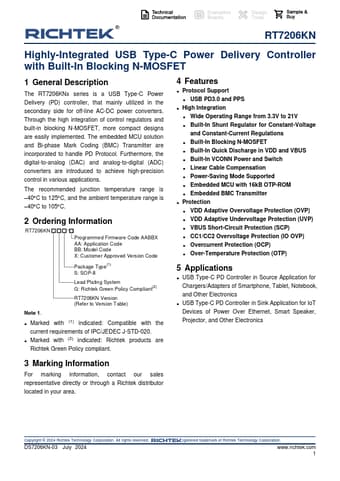

Preview of RT7206KN PDF
