RT1711H - Programmable USB Type-C PD Controller

Description

The RT1711H is a USB Type-C controller that complies with the latest USB Type-C and PD standards.

The RT1711H integrates a complete Type-C Transceiver including the Rp and Rd resistors.

It does the USB TypeC detection including attach and orientation.

Features

  • Dual-Role PD Compatible.
  • Attach/Detach Detection as Host, Device or DRP.
  • Current Capability Definition and Detection.
  • Cable Recognition.
  • Alternate Mode Support.
  • Supporting VCONN with Programmable OCP.
  • Dead Battery Support.
  • Low Power Mode for Attach Detection.
  • Simple I2C Interface with AP or EC.
  • BIST Mode Supported.
  • e-fuse IP.
  • 9-Ball WL-CSP Package.

📥 Download Datasheet

Datasheet Details

Part number RT1711H
Manufacturer Richtek
File Size 455.90 KB
Description Programmable USB Type-C PD Controller
Datasheet download datasheet RT1711H Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
RT174005 General Purpose Low Power PCB Relays TE
RT174009 General Purpose Low Power PCB Relays TE
RT174012 General Purpose Low Power PCB Relays TE
RT174024 General Purpose Low Power PCB Relays TE
RT100 Wirewound Rheostat/Potentiometer Vishay Siliconix

Other Datasheets by Richtek

Part Number Description
RT1711P USB PD Port and Power Controller
RT1715 Programmable USB Type-C PD Controller
RT1716 Programmable USB Type-C PD Controller
RT1719 Sink Only USB Type-C PD Controller
RT1720 60V Hot Swap Controller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

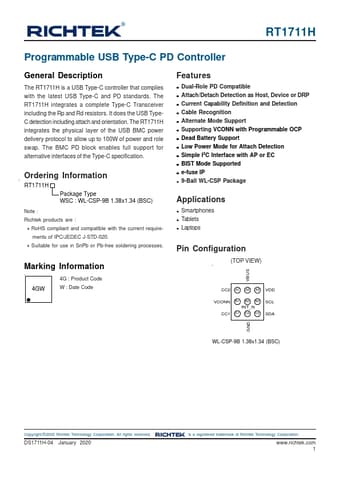

® RT1711H Programmable USB Type-C PD Controller General Description The RT1711H is a USB Type-C controller that complies with the latest USB Type-C and PD standards. The RT1711H integrates a complete Type-C Transceiver including the Rp and Rd resistors. It does the USB TypeC detection including attach and orientation. The RT1711H integrates the physical layer of the USB BMC power delivery protocol to allow up to 100W of power and role swap. The BMC PD block enables full support for alternative interfaces of the Type-C specification. Ordering Information RT1711H Package Type WSC : WL-CSP-9B 1.38x1.34 (BSC) Note : Richtek products are :  RoHS compliant and compatible with the current requirements of IPC/JEDEC J-STD-020.  Suitable for use in SnPb or Pb-free soldering processes.
