RT9120M - High-Efficiency Closed-Loop General-Purpose Class-D Digital Audio Amplifier

Richiek

The RT9120M by Richiek is a High-Efficiency Closed-Loop General-Purpose Class-D Digital Audio Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

RT9120M High-Efficiency Closed-Loop General-Purpose Class-D Digital Audio Amplifier by Richiek - Datasheet Preview — Official preview page of the **RT9120M** High-Efficiency Closed-Loop General-Purpose Class-D Digital Audio Amplifier datasheet (Richiek).

Datasheet Details

Part number	RT9120M
Manufacturer	Richiek
File Size	1.74 MB
Description	High-Efficiency Closed-Loop General-Purpose Class-D Digital Audio Amplifier
Datasheet	RT9120M-Richiek.pdf

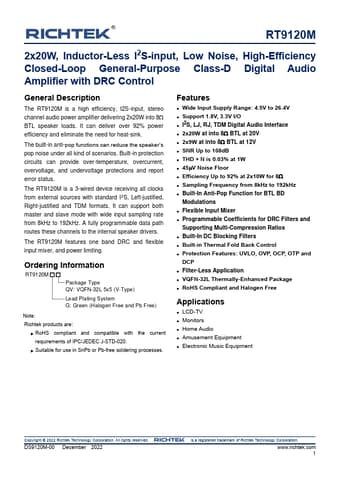

Additional preview pages of the RT9120M datasheet.

RT9120M Product details

Description

The RT9120M is a high efficiency, I2S-input, stereo channel audio power amplifier delivering 2x20W into 8 BTL speaker loads.

Features

one band DRC and flexible input mixer, and power limiting. Ordering Information RT9120M Package Type QV: VQFN-32L 5x5 (V-Type) Lead Plating System G: Green (Halogen Free and Pb Free) Note: Richtek products are:.
RoHS compliant and compatible with the current requirements of IPC/JEDEC J-STD-020.
Suitable for use in SnPb or Pb-free soldering processes. Features.
Wide Input Supply Range: 4.5V to 26.4V.
Support 1.8V, 3.3V I/O.
I2S, LJ, RJ, TDM Digital Audio Interface.
