ZSSC3036 - 16-Bit Sensor Signal Conditioner

Name: ZSSC3036
SKU: ZSSC3036-1447740

Renesas

📥 Download Datasheet

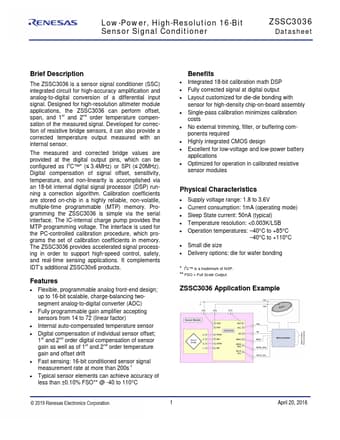

ZSSC3036 Datasheet Preview — Preview of ZSSC3036 PDF

Datasheet Details

Part number	ZSSC3036
Manufacturer	Renesas
File Size	901.39 KB
Description	16-Bit Sensor Signal Conditioner
Datasheet	ZSSC3036-Renesas.pdf

ZSSC3036 Product details

Description

The ZSSC3036 is a sensor signal conditioner (SSC) integrated circuit for high-accuracy amplification and analog-to-digital conversion of a differential input signal.

Features

Flexible, programmable analog front-end design; up to 16-bit scalable, charge-balancing twosegment analog-to-digital converter (ADC).
Fully programmable gain amplifier accepting sensors from 14 to 72 (linear factor).
Internal auto-compensated temperature sensor.
Digital compensation of individual sensor offset; 1st and 2nd order digital compensation of sensor gain as well as of 1st and 2nd order temperature gain and offset drift.
Fast sensing: 16-bit.
