X60003 - Voltage References

Renesas

X60003 Datasheet Preview — Preview of X60003 PDF

Datasheet Details

Part number	X60003
Manufacturer	Renesas ↗
File Size	917.37 KB
Description	Voltage References
Datasheet	X60003-Renesas.pdf

X60003 Product details

Description

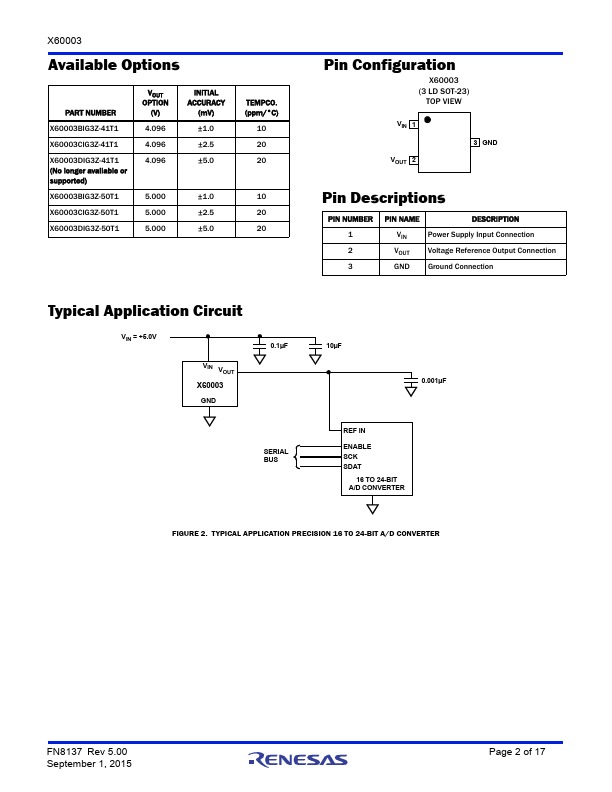

PIN NUMBER 1 2 3 PIN NAME DESCRIPTION VIN Power Supply Input Connection VOUT Voltage Reference Output Connection GND Ground Connection Typical Application Circuit VIN = +5.0V VIN VOUT X60003 GND 0.1µF SERIAL BUS 10µF 0.001µF REF IN ENABLE SCK SDAT 16 TO 24-BIT A/D CONVERTER FIGURE 2. TYPICAL APPLICATION PRECISION 16 TO 24-BIT A/D CONVERTER FN8137 Rev 5.00 September 1, 2015 Page 2 of 17 X60003 Ordering Information PART NUMBER (Notes 2, 3) PART MARKING VOUT (Note 4) (V)

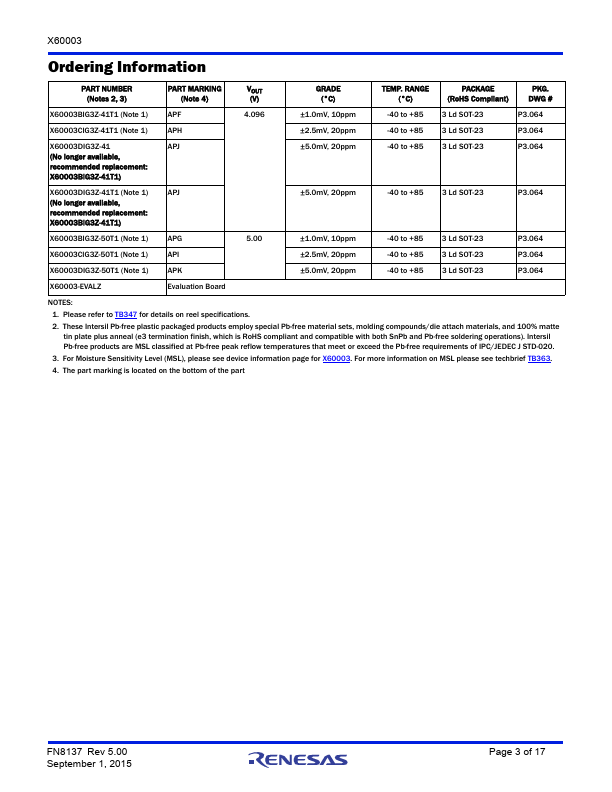

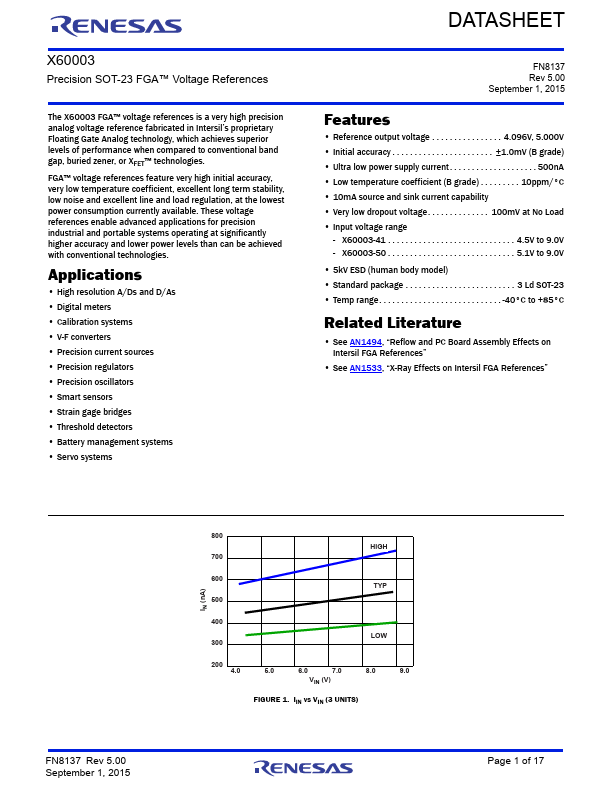

Features

Reference output voltage.
. 4.096V, 5.000V.
Initial accuracy.
. . . ±1.0mV (B grade).
Ultra low power supply current.
500nA.
Low temperature coefficient (B grade).
. . . . 10ppm/°C.
10mA source and sink current capability.
Very low dropout voltage.
. . . . 100mV at No Load.
Input voltage range - X60003-41.
