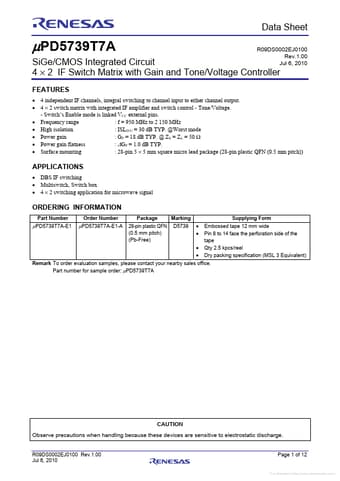

UPD5739T7A Datasheet Preview — Preview of UPD5739T7A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	UPD5739T7A
Manufacturer	Renesas
File Size	284.45 KB
Description	SiGe CMOS
Datasheet	UPD5739T7A_Renesas.pdf

UPD5739T7A Product details

Features

SiGe/CMOS Integrated Circuit 4 × 2 IF Switch Matrix with Gain and Tone/Voltage Controller R09DS0002EJ0100 Rev.1.00 Jul 6, 2010.
4 independent IF channels, integral switching to channel input to either channel output.
4 × 2 switch matrix with integrated IF amplifier and switch control - Tone/Voltage. - Switch’s Enable mode is linked VCC external pins.
Frequency range : f = 950 MHz to 2 150 MHz.
High isolation : ISLD/U = 30 dB TYP. @Worst mode.
Pow.
