RKP202KN Silicon Epitaxial Trench Pin Diode

RKP202KN Description

RKP202KN Silicon Epitaxial Trench Pin Diode for Antenna Switching REJ03G1312-0100 Rev.1.00 Dec 16, 2005 .

RKP202KN Features

* Adopting the trench structure improves low capacitance. (C = 0.43 pF max)
* Low forward resistance. (rf = 1.80 Ω max)
* Low operation current.
* Ultra small leadless Package (0805type; the use of an undersurface electrode structure) for use in compact and products.

📥 Download Datasheet

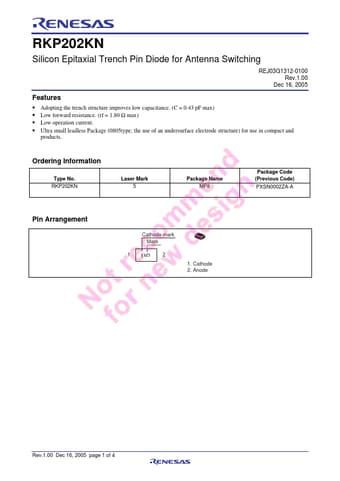

Preview of RKP202KN PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RKP202KN
Manufacturer
Renesas ↗
File Size
140.53 KB
Datasheet
RKP202KN-Renesas.pdf
Description
Silicon Epitaxial Trench Pin Diode
