RC31012A, RC31008A Datasheet - Renesas

RC31012A VersaClock 7 Programmable Jitter Attenuator

RC310xxA VersaClock 7 Programmable Jitter Attenuator Family Datasheet The RC310xxA (RC31008A and RC31012A) are high-performance programmable jitter attenuators with network synchronization capabilities. The devices support JEDEC JESD204B/C for converter synchronization, and SyncE for network-based synchronization. The RC310xxA devices ideal for driving converter circuits in wire-line infrastructure, data center equipment, and instrumentation applications. Applications ▪ Switches / Routers ▪ Sy.

RC31012A Features

* ▪ 169fs RMS typical phase jitter ▪ PCIe® Gen6 Common Clock (CC) 27fs RMS ▪ Compliant with ITU-T G.8262 and G.8262.1 for synchronous Ethernet Equipment Clock (EEC/eEEC) ▪ Jitter attenuation with programmable loop bandwidth from 0.1Hz to 12kHz ▪ 1kHz to 650MHz LVDS/LP-HCSL outputs ▪ 1kHz to 200MHz LVC

RC31008A-Renesas.pdf

This datasheet PDF includes multiple part numbers: RC31012A, RC31008A. Please refer to the document for exact specifications by model.

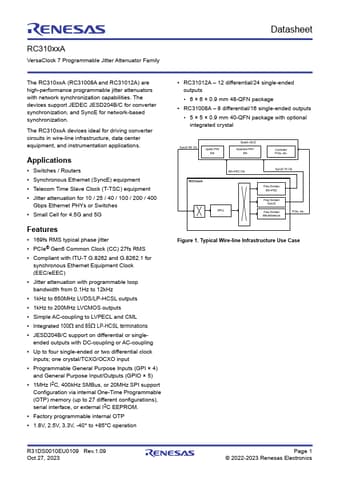

RC31012A Datasheet Preview Page 2 RC31012A Datasheet Preview Page 3

Datasheet Details

Part number:

RC31012A, RC31008A

Manufacturer:

Renesas ↗

File Size:

1.99 MB

Description:

Versaclock 7 programmable jitter attenuator.

Note:

This datasheet PDF includes multiple part numbers: RC31012A, RC31008A.
Please refer to the document for exact specifications by model.
