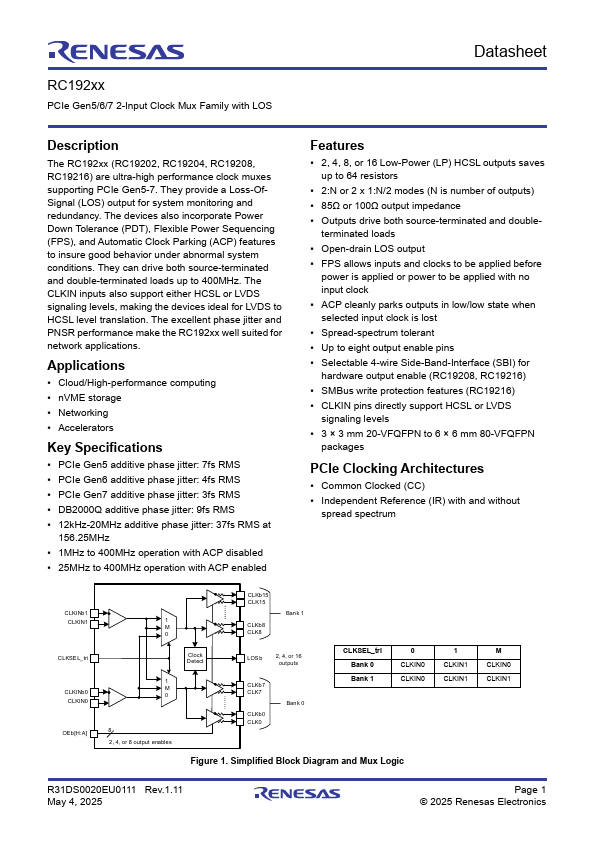

RC192xx PCIe Gen5/6/7 2-Input Clock Mux Family with LOS Datasheet .
Features
* to insure good behavior under abnormal system conditions. They can drive both source-terminated and double-terminated loads up to 400MHz. The CLKIN inputs also support either HCSL or LVDS signaling levels, making the devices ideal for LVDS to HCSL level translation. The excellent phase jitter and PNApplications
* Applications ▪ Cloud/High-performance computing ▪ nVME storage ▪ Networking ▪ Accelerators Key Specifications ▪ PCIe Gen5 additive phase jitter: 7fs RMS ▪ PCIe Gen6 additive phase jitter: 4fs RMS ▪ PCIe Gen7 additive phase jitter: 3fs RMS ▪ DB2000Q additive phase jitter: 9fs RMS ▪ 12kHz-20MHz additRC19204 Distributors
