R2A20112A - Critical Conduction Mode Interleaved PFC Controller

Download the R2A20112A datasheet PDF. This datasheet also covers the R2A20112ASP variant, as both devices belong to the same critical conduction mode interleaved pfc controller family and are provided as variant models within a single manufacturer datasheet.

Description

The R2A20112A controls a boost converter to provide an active power factor correction.

The R2A20112A adopts critical conduction mode for power factor correction and realizes high efficiency and a low switching noise by zero current switching.

Features

  • Absolute Maximum Ratings ⎯ Supply voltage Vcc: 24 V ⎯ Junction temperature Tj:.
  • 40 to +150°C.
  • Electrical Characteristics ⎯ VREF output voltage Vref: 5.0 V ± 1.5% ⎯ UVLO operation start voltage Vuvlh: 10.5 V ± 0.7 V ⎯ UVLO operation shutdown voltage Vuvll: 9.3 V ± 0.5 V ⎯ UVLO hysteresis voltage Hysuvl: 1.2 V ± 0.5 V.
  • Functions ⎯ Boost converter control with critical conduction mode ⎯ Interleaving control ⎯ Soft start function for the reference voltage of Error.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (R2A20112ASP-Renesas.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number R2A20112A
Manufacturer Renesas
File Size 265.90 KB
Description Critical Conduction Mode Interleaved PFC Controller
Datasheet download datasheet R2A20112A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
R2A20112DD Critical Conduction Mode Interleaved PFC Controller Renesas Technology
R2A20112SP Critical Conduction Mode Interleaved PFC Controller Renesas Technology
R2A20111DD Power Factor Correction Controller Renesas Technology
R2A20111SP Power Factor Correction Controller Renesas Technology
R2A20113DD Critical Conduction Mode PFC Controller Renesas Technology

Other Datasheets by Renesas

Part Number Description
R2A20112ASP Critical Conduction Mode Interleaved PFC Controller
R2A20112 Critical Conduction Mode Interleaved PFC Controller
R2A20113ASP Critical Conduction Mode PFC Controller
R2A20114BFP Continuous Conduction Mode Interleaving PFC Controller
R2A20117 critical mode interleaved PFC

Full PDF Text Transcription

Click to expand full text

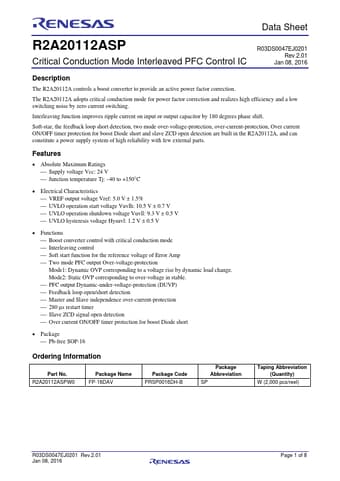

Preliminary Data Sheet R2A20112ASP R03DS0047EJ0201 Critical Conduction Mode Interleaved PFC Control IC Rev.2.01 Jan 08, 2016 Description The R2A20112A controls a boost converter to provide an active power factor correction. The R2A20112A adopts critical conduction mode for power factor correction and realizes high efficiency and a low switching noise by zero current switching. Interleaving function improves ripple current on input or output capacitor by 180 degrees phase shift. Soft-star, the feedback loop short detection, two mode over-voltage-protection, over-current-protection, Over current ON/OFF timer protection for boost Diode short and slave ZCD open detection are built in the R2A20112A, and can constitute a power supply system of high reliability with few external parts.
