QLx4270RIQ DisplayPort Lane Extender

PIN NAME PIN NUMBER DESCRIPTION DT 1 Detection Threshold. Reference DC CURRENT threshold for input signal power detection. Data output Out[k] is muted when the power of the equalized version of In[k] falls below the threshold. Tie to ground to disable electrical idle preservation and always ena.

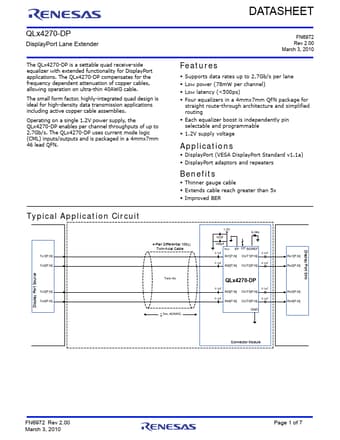

DATASHEET QLx4270-DP DisplayPort Lane Extender The QLx4270-DP is a settable quad receive-side equalizer with extended functionality for DisplayPort applications. The QLx4270-DP compensates for the frequency dependent attenuation of copper cables, allowing operation on ultra-thin 40AWG cable. The small form factor, highly-integrated quad design is ideal for high-density data transmission applications including active copper cable assemblies. Operating on a single 1.2V power supply, the QLx4270-D.

QLx4270RIQ Features

* Supports data rates up to 2.7Gb/s per lane

* Low power (78mW per channel)

* Low latency (
