PS2702-1 - SOP MULTI PHOTOCOUPLER

Renesas

📥 Download Datasheet

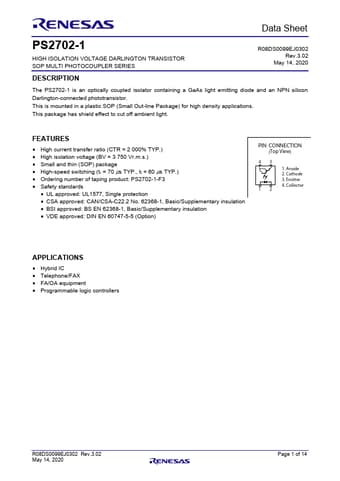

PS2702-1 Datasheet Preview — Preview of PS2702-1 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PS2702-1
Manufacturer	Renesas ↗
File Size	5.06 MB
Description	SOP MULTI PHOTOCOUPLER
Datasheet	PS2702-1-Renesas.pdf

PS2702-1 Product details

Description

The PS2702-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon Darlington-connected phototransistor.

Features

High current transfer ratio (CTR = 2 000% TYP. ).
High isolation voltage (BV = 3 750 Vr. m. s. ).
Small and thin (SOP) package.
High-speed switching (tr = 70 s TYP. , tf = 60 s TYP. ).
Ordering number of taping product: PS2702-1-F3.
Safety standards.
UL approved: UL1577, Single protection.
CSA approved: CAN/CSA-C22.2 No. 62368-1, Basic/Supplementary insulation.
BSI approved: BS EN 62368-1, Basic/Supplementary insulation.
VDE approved: DIN EN 60747-5.
