MK1716-01 - SERIAL PROGRAMMABLE PCI SS VERSACLOCK SYNTHESIZER

Features

  • The MK1716-01 is a versatile serial programmable clock source which takes up very little board space. The device can simultaneously generate two groups of 4 output clocks and a reference clock output. Both clock groups (CLKA and CLKB) are derived from a single PLL, and have the ability to incorporate Spread Spectrum frequency modulation for reduced system EMI. Each group has control of independent PLL output divide values. Outputs may be programmed on the fly, and will lock to a new frequency i.

📥 Download Datasheet

Datasheet Details

Part number MK1716-01
Manufacturer Renesas
File Size 338.78 KB
Description SERIAL PROGRAMMABLE PCI SS VERSACLOCK SYNTHESIZER
Datasheet download datasheet MK1716-01 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MK1711-01 200 MHz Selectable Clock Source Integrated Circuit Systems
MK1714-02 Spread Spectrum Multiplier Clock Integrated Circuit Systems
MK1704A Low EMI Clock Generator Integrated Circuit Systems
MK1707 Low EMI Clock Generator Integrated Circuit Systems
MK1709 Low EMI Clock Generator Integrated Circuit Systems

Other Datasheets by Renesas

Part Number Description
MK1714-02 Spread Spectrum Multiplier Clock
MK1704A LOW EMI CLOCK GENERATOR
MK1705A ATI LOW EMI CLOCK GENERATOR
MK1707 LOW EMI CLOCK GENERATOR
MK1709 LOW EMI CLOCK GENERATOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

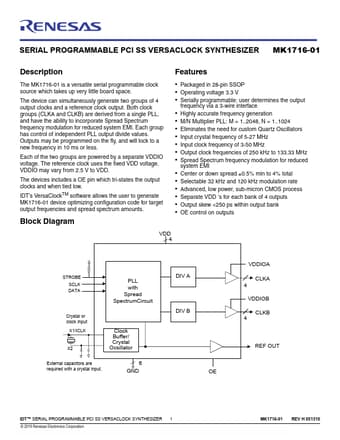

DATASHEET SERIAL PROGRAMMABLE PCI SS VERSACLOCK SYNTHESIZER MK1716-01 Description Features The MK1716-01 is a versatile serial programmable clock source which takes up very little board space. The device can simultaneously generate two groups of 4 output clocks and a reference clock output. Both clock groups (CLKA and CLKB) are derived from a single PLL, and have the ability to incorporate Spread Spectrum frequency modulation for reduced system EMI. Each group has control of independent PLL output divide values. Outputs may be programmed on the fly, and will lock to a new frequency in 10 ms or less. Each of the two groups are powered by a separate VDDIO voltage. The reference clock uses the fixed VDD voltage. VDDIO may vary from 2.5 V to VDD.
