M51953B, M51953A Voltage Detecting / System Resetting

M51953B Description

M51953A,B/M51954A,B Voltage Detecting, System Resetting IC Series REJ03D0776-0300 Rev.3.00 Sep 18, 2007 .
M51953A,B/M51954A,B are semiconductor integrated circuits designed for detecting supply voltage and resetting all types of logic circuits such as CPUs.

M51953B Features

* Few external parts
* Large delay time with a capacitor of small capacitance (td ≈ 100 ms, at 0.33 µF) (M51953, M51954)
* Low threshold operating voltage (Supply voltage to keep low-state at low supply voltage): 0.6 V (Typ) at RL = 22 kΩ
* Wide supply voltage range:

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: M51953B, M51953A. Please refer to the document for exact specifications by model.

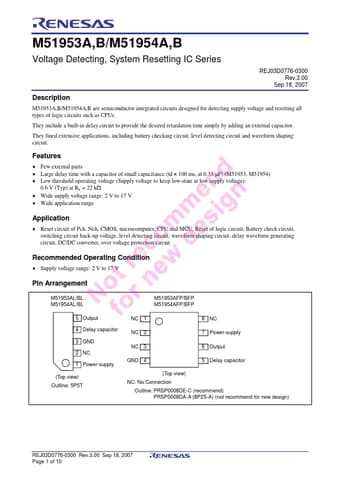

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M51953B, M51953A
Manufacturer
Renesas ↗
File Size
217.18 KB
Datasheet
M51953A-Renesas.pdf
Description
Voltage Detecting / System Resetting
Note
This datasheet PDF includes multiple part numbers: M51953B, M51953A.
Please refer to the document for exact specifications by model.
