ISL94216A - 16-Cell Battery Front-End

Renesas

📥 Download Datasheet

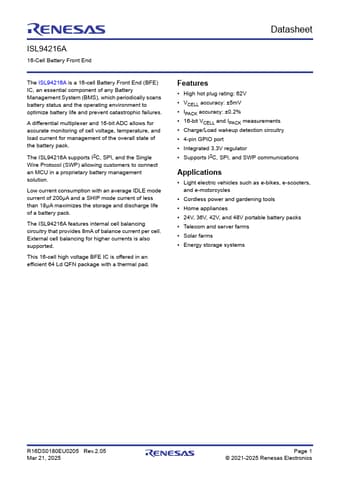

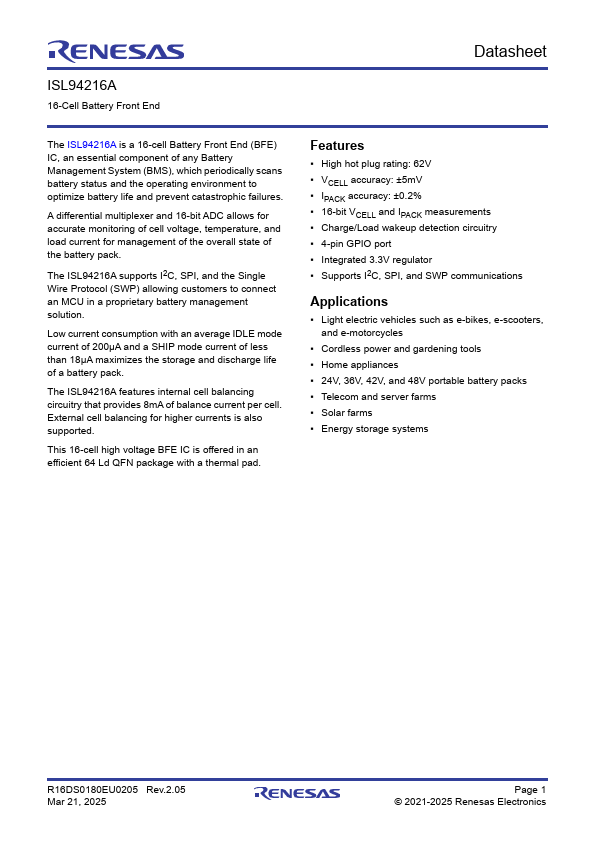

ISL94216A Datasheet Preview — Preview of ISL94216A PDF

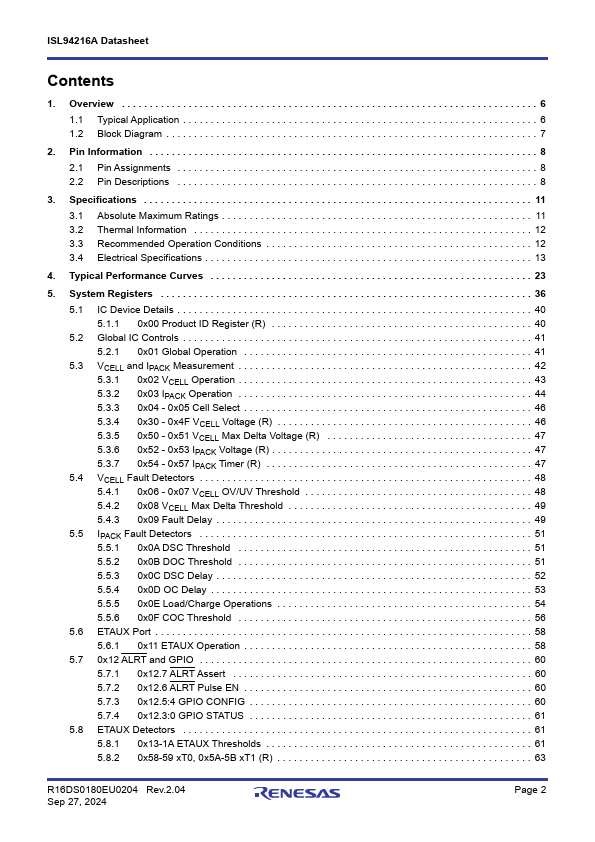

datasheet Preview Page 2

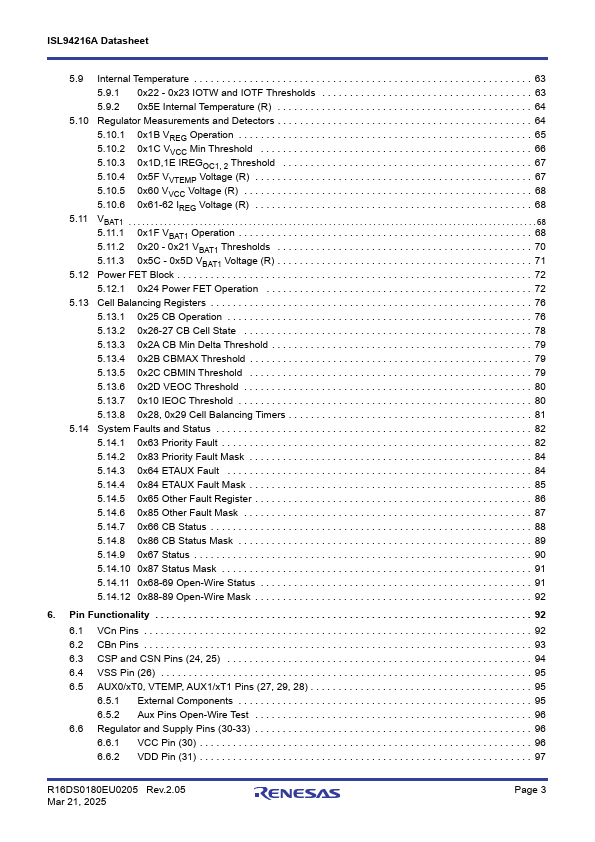

datasheet Preview Page 3

Datasheet Details

Part number	ISL94216A
Manufacturer	Renesas
File Size	2.07 MB
Description	16-Cell Battery Front-End
Datasheet	ISL94216A-Renesas.pdf

ISL94216A Product details

Description

8 3. Specifications 11 3.1 Absolute Maximum Ratings .

Features

internal cell balancing circuitry that provides 8mA of balance current per cell. External cell balancing for higher currents is also supported. This 16-cell high voltage BFE IC is offered in an efficient 64 Ld QFN package with a thermal pad. Features.
High hot plug rating: 62V.
VCELL accuracy: ±5mV.
IPACK accuracy: ±0.2%.
16-bit VCELL and IPACK measurements.
Charge/Load wakeup detection circuitry.
4-pin GPIO port.
Integrated 3.3V regulator.
Supports I2C,.
