ISL9211A - Charging System Safety Circuit

Renesas

📥 Download Datasheet

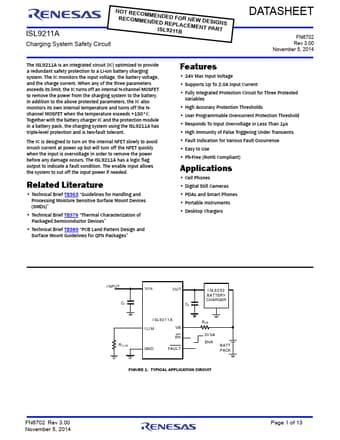

ISL9211A Datasheet Preview — Preview of ISL9211A PDF

Datasheet Details

Part number	ISL9211A
Manufacturer	Renesas
File Size	430.67 KB
Description	Charging System Safety Circuit
Datasheet	ISL9211A-Renesas.pdf

ISL9211A Product details

Description

SYMBOL VIN GND NC FAULT EN VB ILIM OUT - PIN NUMBER 1 2 3 4 5 6 7 8 PAD DESCRIPTION The input power source.The VIN can withstand 24V input.System ground reference.No connection and must be left floating.FAULT is an open-drain logic output that turns LOW when any protection event occurs.IC enable pin.Pull this pin to LO to enable the device and pull it to HI to disable.Battery voltage monitoring input.This pin is connected to the battery pack positive terminal via an isolation resisto

Features

24V Max Input Voltage.
Supports Up To 2.0A Input Current.
Fully Integrated Protection Circuit for Three Protected Variables.
High Accuracy Protection Thresholds.
User Programmable Overcurrent Protection Threshold.
Responds To Input Overvoltage in Less Than 1µs.
High Immunity of False Triggering Under Transients.
Fault Indication for Various Fault Occurrence.
Easy to Use.
Pb-Free (RoHS Compliant) Applicatio.
