ISL9122A - Buck-Boost Regulator

Renesas

📥 Download Datasheet

ISL9122A Datasheet Preview — Preview of ISL9122A PDF

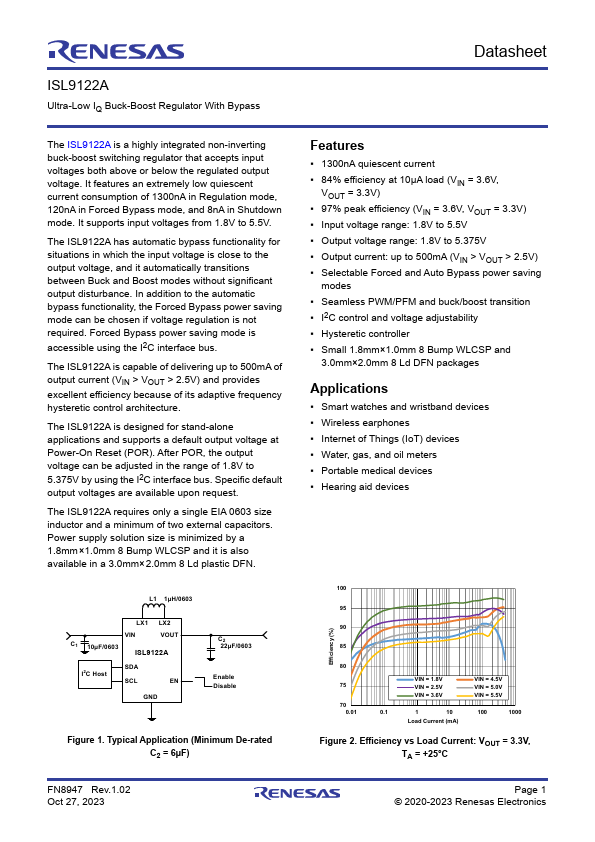

datasheet Preview Page 2

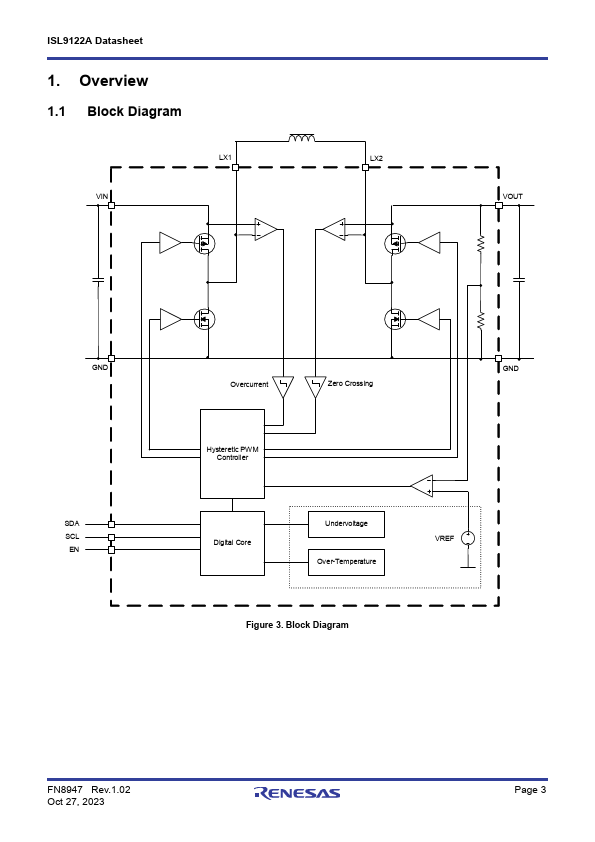

datasheet Preview Page 3

Datasheet Details

Part number	ISL9122A
Manufacturer	Renesas
File Size	893.86 KB
Description	Buck-Boost Regulator
Datasheet	ISL9122A-Renesas.pdf

ISL9122A Product details

Description

4 3. Specifications . .

Features

an extremely low quiescent current consumption of 1300nA in Regulation mode, 120nA in Forced Bypass mode, and 8nA in Shutdown mode. It supports input voltages from 1.8V to 5.5V. The ISL9122A has automatic bypass functionality for situations in which the input voltage is close to the output voltage, and it automatically transitions between Buck and Boost modes without significant output disturbance. In addition to the automatic bypass functionality, the Forced Bypass power saving mode can be chos.
