ISL91212A - Triple/Quad Output PMIC

Renesas

📥 Download Datasheet

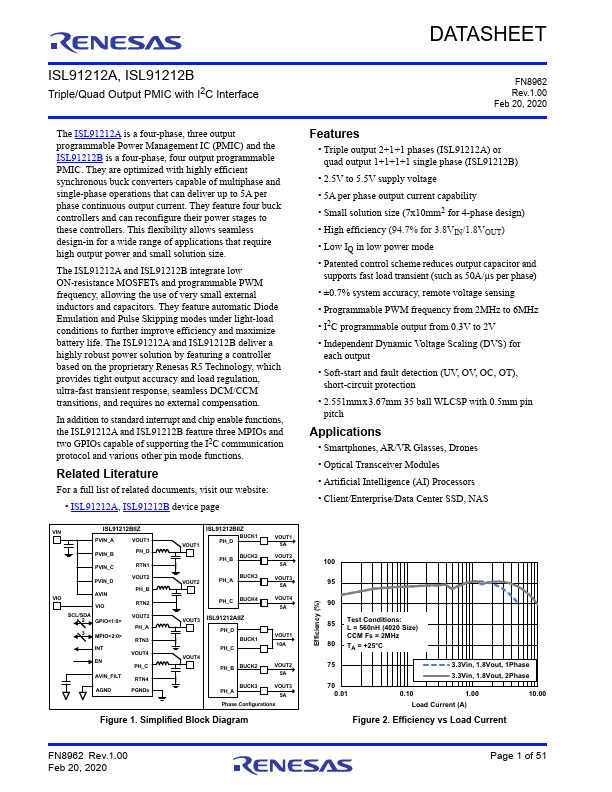

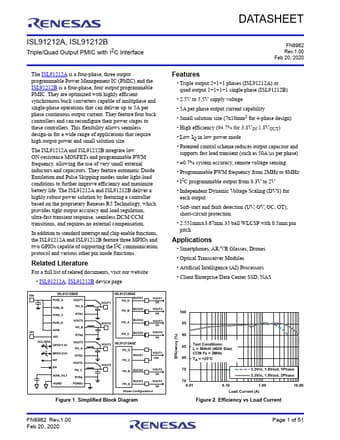

ISL91212A Datasheet Preview — Preview of ISL91212A PDF

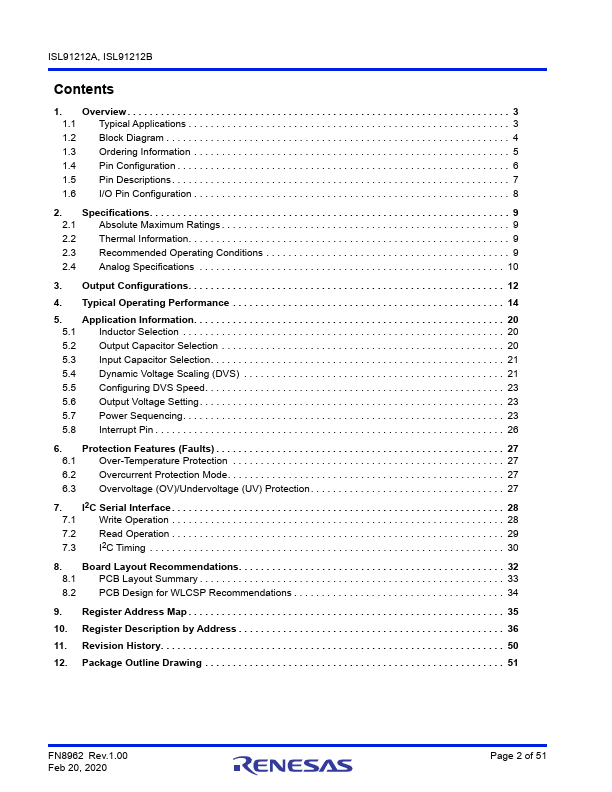

datasheet Preview Page 2

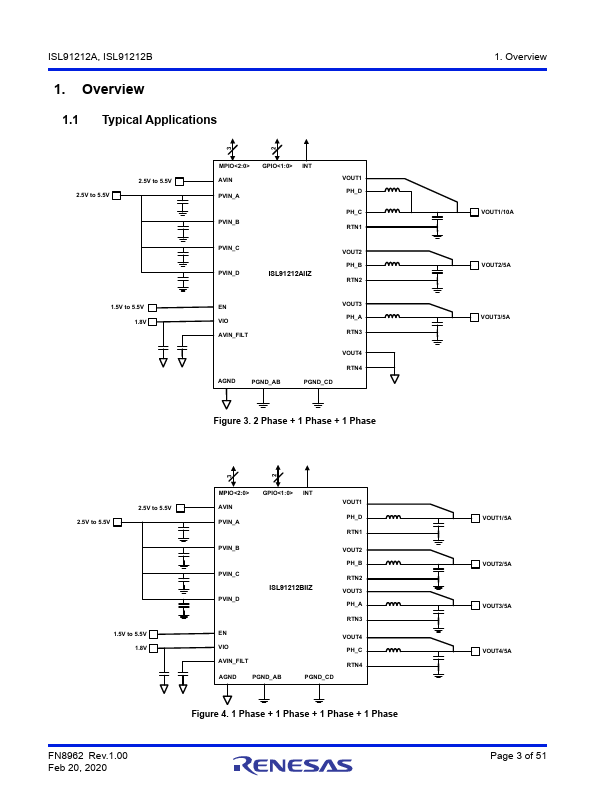

datasheet Preview Page 3

Datasheet Details

Part number	ISL91212A
Manufacturer	Renesas
File Size	2.86 MB
Description	Triple/Quad Output PMIC
Datasheet	ISL91212A-Renesas.pdf

ISL91212A Product details

Description

. . 9 2.1 Absolute Maximum Ratings .

Features

Triple output 2+1+1 phases (ISL91212A) or quad output 1+1+1+1 single phase (ISL91212B).
2.5V to 5.5V supply voltage.
5A per phase output current capability.
Small solution size (7x10mm2 for 4-phase design).
High efficiency (94.7% for 3.8VIN/1.8VOUT).
Low IQ in low power mode.
Patented control scheme reduces output capacitor and supports fast load transient (such as 50A/µs per phase).
±0.7% system accuracy, remote voltage se.
