ISL91107 - High Efficiency Buck-Boost Regulator

Renesas

📥 Download Datasheet

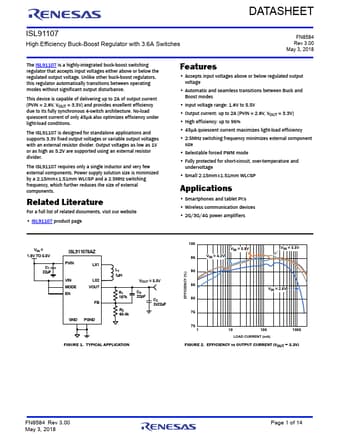

ISL91107 Datasheet Preview — Preview of ISL91107 PDF

Datasheet Details

Part number	ISL91107
Manufacturer	Renesas
File Size	695.65 KB
Description	High Efficiency Buck-Boost Regulator
Datasheet	ISL91107-Renesas.pdf

ISL91107 Product details

Description

PIN # PIN NAMES DESCRIPTION A1, A2 PVIN Power input.Range: 1.8V to 5.5V.Connect 22µF capacitor to PGND.A3 VIN Supply input.Range: 1.8V to 5.5V.B1, B2 LX1 Inductor connection, input side.B3 EN Logic input for enable.Drive HIGH to enable device, LOW to disable.C1, C2 PGND Power ground for high switching current.C3 MODE Logic input, HIGH for auto PFM mode.LOW for forced PWM operation.D1, D2 LX2 Inductor connection, output side.D3 GND Analog ground pin E1, E2 VOUT B

Features

Accepts input voltages above or below regulated output voltage.
Automatic and seamless transitions between Buck and Boost modes.
Input voltage range: 1.8V to 5.5V.
Output current: up to 2A (PVIN = 2.8V, VOUT = 3.3V).
High efficiency: up to 96%.
45µA quiescent current maximizes light-load efficiency.
2.5MHz switching frequency minimizes external component size.
Selectable forced PWM mode.
Fully protected for short-c.
