ISL85003A, ISL85003 Datasheet - Renesas

ISL85003A Highly Efficient 3A Synchronous Buck Regulator

DATASHEET ISL85003, ISL85003A Highly Efficient 3A Synchronous Buck Regulator The ISL85003 and ISL85003A are synchronous buck regulators with integrated high-side and low-side FETs. The regulator can operate from an input voltage range of 4.5V to 18V while delivering a very efficient continuous 3A current. This is all delivered in a very compact 3mmx4mm DFN package. The ISL85003 is designed on Renesas’ proprietary fab process that is designed to deliver very low rDS(ON) FETs with an optimized cu.

ISL85003A Features

* Input voltage range 4.5V to 18V

* Output voltage adjustable from 0.8V, ±1%

* Efficiency up to 95%

* Integrated boot diode with undervoltage detection

* Current mode control - DCM/CCM - Internal or external compensation options - 500kHz switching frequency op

ISL85003-Renesas.pdf

This datasheet PDF includes multiple part numbers: ISL85003A, ISL85003. Please refer to the document for exact specifications by model.

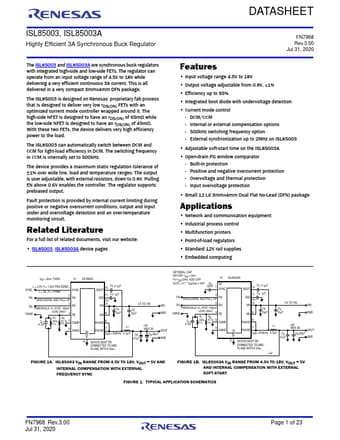

ISL85003A Datasheet Preview Page 2 ISL85003A Datasheet Preview Page 3

Datasheet Details

Part number:

ISL85003A, ISL85003

Manufacturer:

Renesas ↗

File Size:

1.50 MB

Description:

Highly efficient 3a synchronous buck regulator.

Note:

This datasheet PDF includes multiple part numbers: ISL85003A, ISL85003.
Please refer to the document for exact specifications by model.
