ISL83070E - RS-485/RS-422 Transceivers

Renesas

📥 Download Datasheet

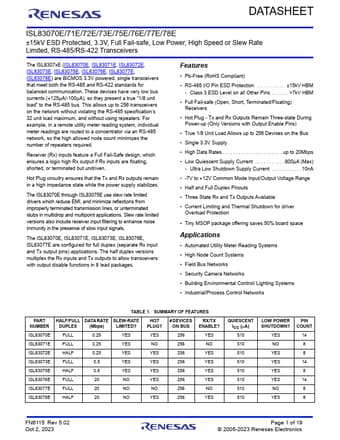

ISL83070E Datasheet Preview — Preview of ISL83070E PDF

Datasheet Details

Part number	ISL83070E
Manufacturer	Renesas
File Size	1.24 MB
Description	RS-485/RS-422 Transceivers
Datasheet	ISL83070E-Renesas.pdf

ISL83070E Product details

Description

PIN FUNCTION RO Receiver output: If A - B  -50mV, RO is high; If A - B  -200mV, RO is low; RO = High if A and B are unconnected (floating) or shorted.RE Receiver output enable.RO is enabled when RE is low; RO is high impedance when RE is high.If the Rx enable function isn’t required, connect RE directly to GND or through a 1k to 3k resistor to GND.DE Driver output enable.The driver outputs, Y an

Features

Pb-Free (RoHS Compliant).
RS-485 I/O Pin ESD Protection  15kV HBM - Class 3 ESD Level on all Other Pins.
. >7kV HBM.
Full Fail-safe (Open, Short, Terminated/Floating) Receivers.
Hot Plug - Tx and Rx Outputs Remain Three-state During Power-up (Only Versions with Output Enable Pins).
True 1/8 Unit Load Allows up to 256 Devices on the Bus.
Single 3.3V Supply.
High Data Rates.
