ISL81801 80V Bidirectional 4-Switch Synchronous Buck-Boost Controller

ISL81801 Description

Datasheet ISL81801 80V Bidirectional 4-Switch Synchronous Buck-Boost Controller The ISL81801 is a true bidirectional 4-switch synchronous buck-boost.

ISL81801 Features

* such as OVP, UVP, OTP, average and peak current limit on both input and output to ensure high reliability in both unidirectional and bidirectional operation. The IC is packaged in a space-conscious 32 LD 5mm x5mm TQFN package or easy to assemble 4.4mmx9.7mm 38 LD HTSSOP package. Both packages use an

ISL81801 Applications

* The ISL81801 uses a proprietary buck-boost control algorithm with valley current modulation for Boost mode and peak current modulation for Buck mode control. The ISL81801 has four independent control loops for input and output voltages and currents. Inherent peak current sensing at both ends and cy

📥 Download Datasheet

Preview of ISL81801 PDF

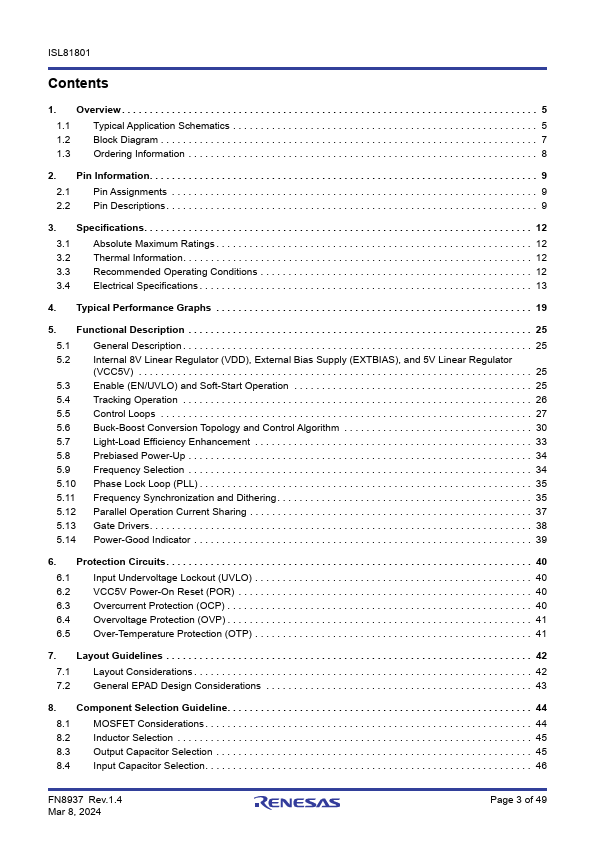

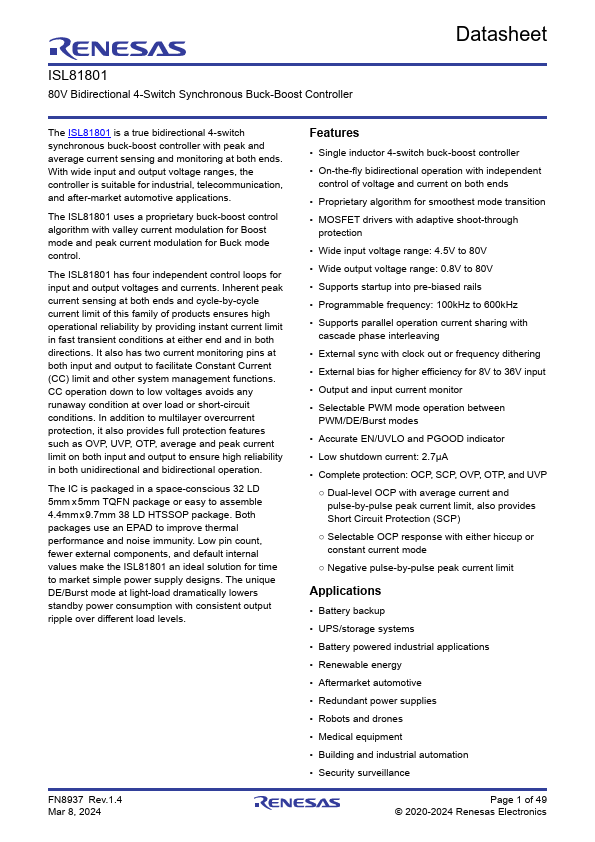

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISL81801
Manufacturer
Renesas ↗
File Size
1.61 MB
Datasheet
ISL81801-Renesas.pdf
Description
80V Bidirectional 4-Switch Synchronous Buck-Boost Controller
