ISL6520 Single Synchronous Buck Pulse-Width Modulation (PWM) Controller

ISL6520 NOT RECOMMENDED FOR NEW DESIGNS NO RECOMMENDED REPLACEMENT contact our Technical Support Center at 1-888-INTERSIL or www.intersil.com/tsc Single Synchronous Buck Pulse-Width Modulation (PWM) Controller DATASHEET FN9009 Rev 6.00 Apr 3, 2007 The ISL6520 makes simple work out of implementing a complete control and protection scheme for a DC/DC stepdown converter. Designed to drive N-Channel MOSFETs in a synchronous buck topology, the ISL6520 integrates the control, output adjustment, mo.

ISL6520 Features

* a 15MHz gain-bandwidth product and 8V/s sle

ISL6520 Datasheet (652.30 KB)

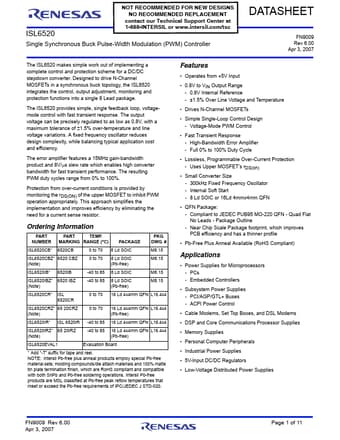

ISL6520 Datasheet Preview — Preview of ISL6520 PDF

Datasheet Details

Part number:

ISL6520

Manufacturer:

Renesas ↗

File Size:

652.30 KB

Description:

Single synchronous buck pulse-width modulation (pwm) controller.
