ISL55002 - High Supply Voltage 200MHz Unity-Gain Stable Operational Amplifier

Renesas

Datasheet Details

Part number	ISL55002
Manufacturer	Renesas
File Size	636.78 KB
Description	High Supply Voltage 200MHz Unity-Gain Stable Operational Amplifier

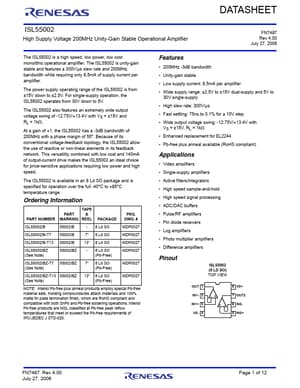

Datasheet	ISL55002-Renesas.pdf

a 300V/µs slew rate and 200MHz bandwidth while requiring only 8.5mA of supply current per amplifier. The power supply operating range of the ISL55002 is from ±15V down to ±2.5V. For single-supply operation, the ISL55002 operates from 30V down to 5V. The ISL55002 also features an extremely wide output voltage swing of -12.75V/+13.4V with VS = ±15V and RL = 1k. At a gain of +1, the ISL55002 has a -3dB bandwidth of 200MHz with a phase margin of 55°. Because of its conventional voltage-feedback t.
